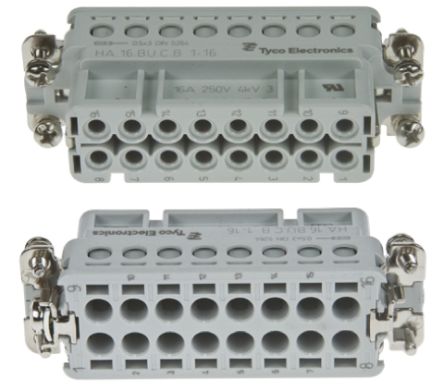

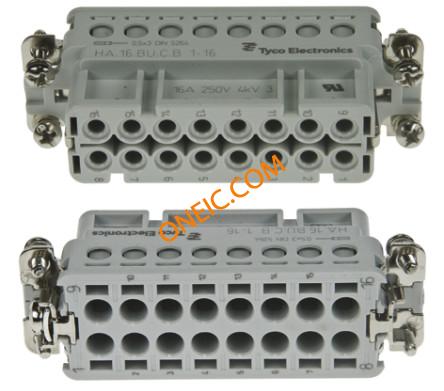

2-1103417-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | HA.16.BU.C HTS Connectors and Accessories CONN INSERT SKT SZ5 16POS CRIMP HD Connector, Insert HA16 female, crimp Heavy Duty Power Connectors SKT INSERT 16+PE HA.16 Connector Accessories Insert Female 16 POS Polycarbonate Loose Piece Connector Accessories Insert Female 16 POS Polycarbonate Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDConnector,InsertHA16female,crimp TE Connectivity HA 系列 16针 电源连接器 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 80 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 250V | 极数 | 16+PE |
| 供电电压 | 250 | 最大额定电流 | 16A |
机械参数
| 尺寸 | 5 | 颜色 | Beige |
| 材料（通用） | PBT | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | HE/HA |
| 连接器类型 | Insert without Contacts | 插入件材料 | 插座 |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 包装数量 | 10 |
| 主要材料 | Connector | 端接样式 | Crimp |
| 触点数 | 16 | 位数 | 16+Ground |
| 外壳尺寸-插件 | 否 | 兼容外壳尺寸（如TM-700等） | 面板 |
产品信息
| 备注 | 与 HTS 系列 HE/HA 接触件搭配使用 | 类型 | Insert |
| 连接器性别 | Female | 系列 | HA |
| 制造商全称 | HA16Series | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
