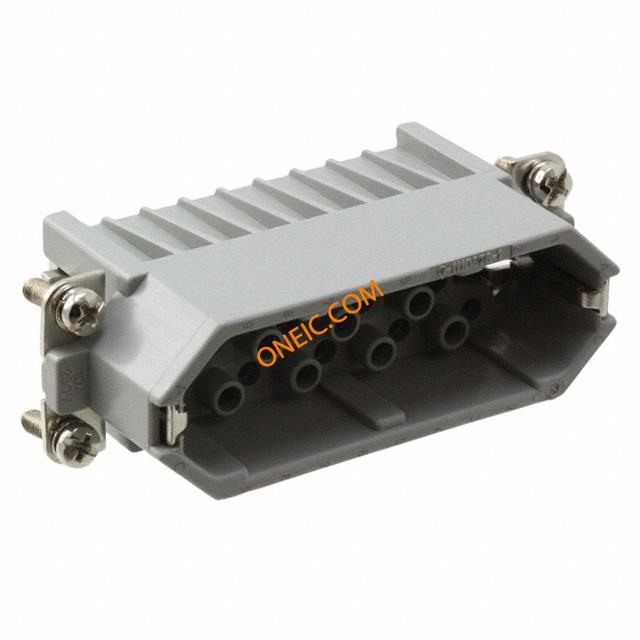

2-1103108-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | HN.D.25.STI.C HTS Connectors and Accessories CONN INSERT MALE HN.D.25 SRS Heavy Duty Power Connectors PIN INSERT 25+PE HN.D.25 SIZE 5 7 Connector Accessories Insert Male 25 POS Polycarbonate Loose Piece Connector Accessories Insert Male 25 POS Polycarbonate Loose Piece Product Highlights:HN.D.25 SeriesInsertProduct Size = 5, 7Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 极数 | 25+PE |
| 供电电压 | 250 | 最大额定电流 | 10A |
机械参数
| 尺寸 | 5 | 颜色 | Gray |
| 材料（通用） | 生产控制 | 包装方式 | Bulk |
| 触头类型 | HTS HN.D | 连接器类型 | Insert without Contacts |
| 插入件材料 | 插针 | 插入力 | Male |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 5 |
| 端接样式 | Crimp | 位数 | 25+Ground |
| 外壳尺寸-插件 | 否 | ||
产品信息
| 备注 | 与 HN.D 系列接触件搭配使用, 使用 2 个 25 位插入件以构成 50 位插入件。 | 连接器性别 | Male |
| 系列 | HN.D.25 | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
