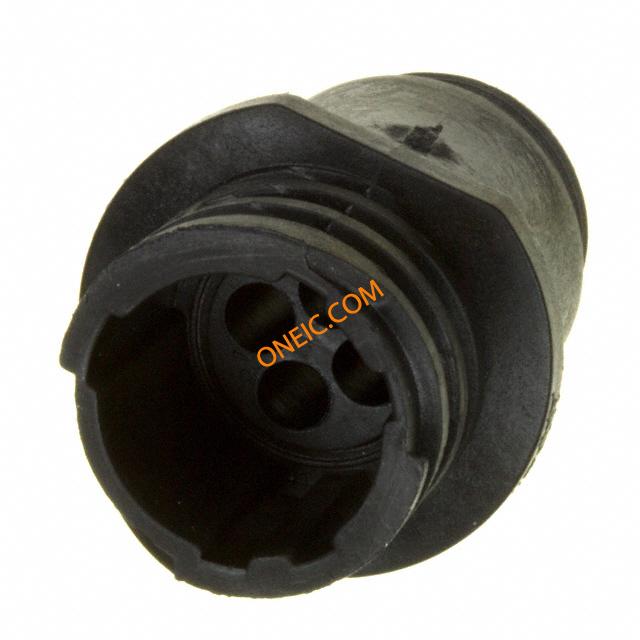

182919-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS Crimp ST CPC Connectors CONN RCPT CPC 4POS FREE HANGING Cable mnt rcpt,series1,sz 11,4 way,pin Standard Circular Connector 11-4 FR-HANG RCP Conn Housing RCP 4 POS Crimp ST Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSING, 4WAY, STRAIGHT Cablemntrcpt,series1,sz11,4way,pin Connector: circular; Series: CPC Series 1; male; w/o terminals Receptacle CPC 1 4P Female 11, 182919-1, TE Connectivity TE Connectivity 4 路 直 母 PCB 壳体 CPC FR-HANG RCP |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - CPC Series | 额定电压 | 600V |
| 通道数量 | 4 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 深度 | 23.4mm | 宽度 | 20.6mm |
| 高度 | 20.6 mm | 长度 | 34.1mm |
| 密封型 | No | 重量 | 0.004 |
| 包装方式 | Bulk | 外壳尺寸 | 11 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | :- | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | size 11 |
| 连接器样式 | Receptacle | 锁定特性 | threaded joint, external thread |
| 壳体材料 | Thermoplastic | 总长度 | 34.1 mm |
| 包装数量 | 50 | 主要材料 | IndustrialRectangular |
| 端接样式 | Wire | 第一触头极性 | Pin |
| 配接方向 | Keyed | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | polyester |
| 第二连接器安装特性 | Standard | ||
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Series 1 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 制造商全称 | 182919Series |
| 产品子类型 | Connector | 适配器系列 | CPC Series 1 |
| 单元数量 | 1 | 其他规格 | Without |
| 适用产品/相关产品 | Pin Contacts | ||
