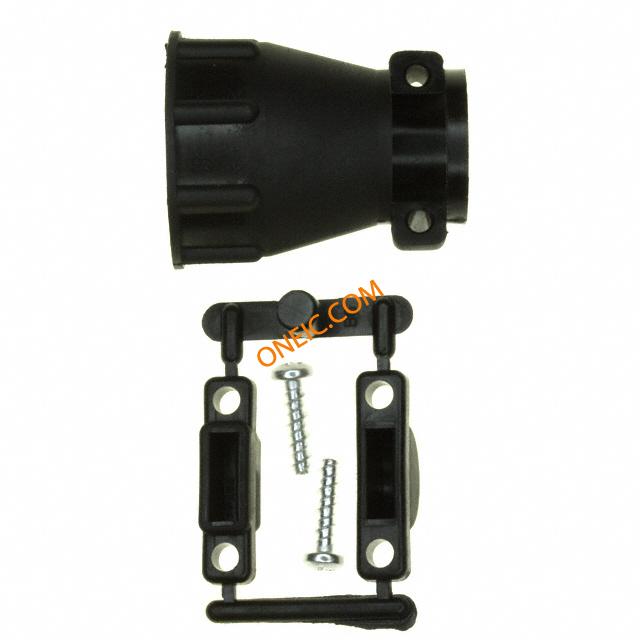

点击放大查看
182655-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 17 CPC cable clamp,Shell size 17A Standard Circular Connector 17 SIZE STD CLAMP Connector Accessories Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 17Body Style = StraightCable Diameter (Max.) = 11.51 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CIR CABLE CLAMP, SIZE 17, THERMOPLASTIC CPC,CABLECLAMP,SHELLSIZE17,15/16-20THREADSIZE Cabel hood and fastener; Series: CPC; Case: size 17; UL94V-0 Cap size 17 11.5 mm, 182655-1, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 11.51mm 捆束直径 17 SIZE CPC STD CLAMP |
| 分类 |
商业参数
| 商标名 | CPC Accessories | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Black | 宽度 | 28.6 mm |
| 长度 | 35.6mm | 重量 | 0.014 |
| 直径 | 1.125" (28.6mm) | 材料（通用） | Thermoplastic |
| 包装方式 | Individual | 外壳尺寸 | 17 |
| 螺纹尺寸 | 15/16-20 | 基体材料 | Thermoplastic |
| 电缆开口 | 0.453" (11.51mm) | 安装类型 | Screw |
| 电缆直径 | 11.51 mm | 封装形式 | size 17 |
| 外壳材料（壳体） | Thermoplastic | 线束直径 | 11.51mm |
| 连接器用途 | cabel hood and fastener | 总长度 | 35.6 mm |
| 包装数量 | 1 | 电缆端接方式 | Cable Clamp |
| 连接器颜色 | Black | 外壳尺寸-插件 | 17 |
| 绝缘材料 - 材质 | :Thermoplastic | 线规或范围 - mm² | 11.5mm |
| 外径-未扩张 | :11.5mm | ||
产品信息
| SPG | 1 | 类型 | Clamp |
| 系列 | CPC | 产品特性 | Assembly Kit |
| CAD图纸 | 3D CAD Model | 产品子类型 | Cable Clamps |
| 适配器系列 | CPC | 单元数量 | 1 |
| 射频系列/标准 | 182655 | 适用产品/相关产品 | :CPC Connectors |
环境参数
| 工作温度 | :105°C | ||
