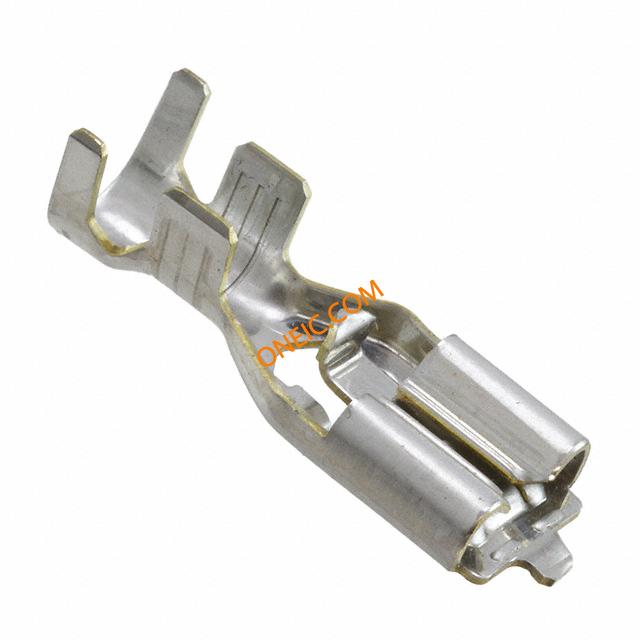

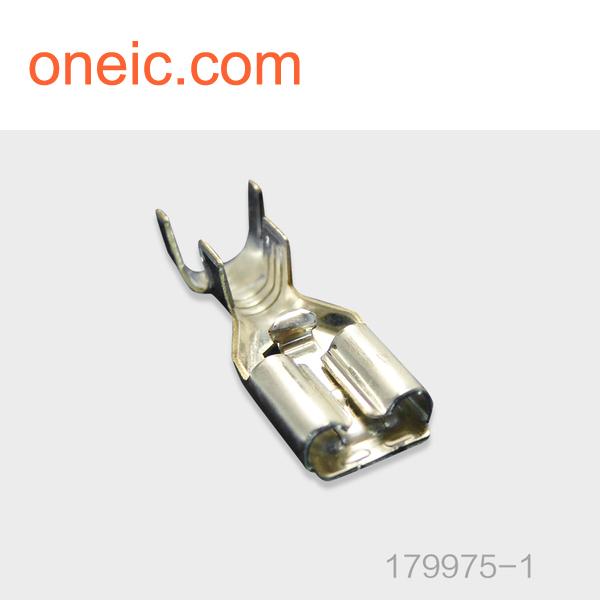

179975-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 10-15AWG RCP 22.2mm 7.6mm Strip Headers & Wire Housings RCPT 15-10 STR .250 Positive Lock Connectors CONN RCPT TAB 15-10AWG STR .250 Quick Disconnect Terminal 10-15AWG RCP 22.2mm 7.6mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.51 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = StraightWire Range = 1.60-6.00² [15-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL EXII 250 REC 15-10AWG PTBR |
| 分类 |
商业参数
| 其他名称 | A107113CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 4,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.51 [.250 x .020] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.248" (6.30mm) |
| 导线线规 | 15-10 | 端接方式 | Crimp |
| 重量（g） | 11.9 | 安装类型 | Free Hanging (In-Line) |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | No | 接触镀层 | Unplated |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | AMP POSITIVE LOCK EX Series | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | 3 – 4.3 mm [ .118 – .169 in ] |
| 绝缘直径 | 3.00-4.29 [.118-.169] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 1.60-6.00² [15-10] |
| 外径-未扩张 | 4.3 mm [ .169 in ] | ||
产品信息
| 名称 | 端子 | 单位 | PCS |
| 连接器性别 | Female | 系列 | 250 |
| 数量 | 12000.0 | 编码、键控 | No |
| 产品子类型 | Contacts | 制造国家 | 中国 |
| 设备部件号 | 179975-1.pdf | 最小起订量 | 1 |
环境参数
| 工作温度 | -40 – 105 | ||
文档与媒体
相关型号
179970-1
