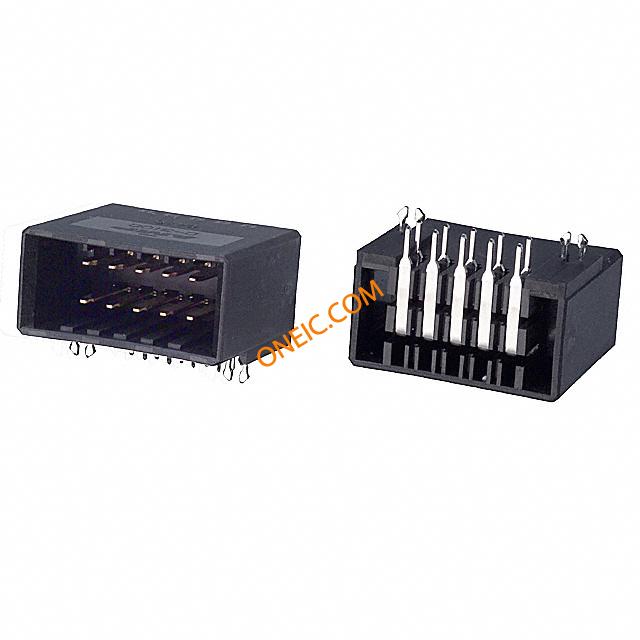

178305-3
| 制造商 | |
| 描述 | Conn Power M 10 POS 3.8mm Solder RA Thru-Hole 10 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 10POS DUAL R/A 30GOLD D-3000 10 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Heavy Duty Power Connectors 10-P POST HDR D-3100 Conn Power M 10 POS 3.8mm Solder RA Thru-Hole 10 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 10Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Header,H,10way,Tab,Dynamic,D3100 TE Connectivity Dynamic 3000 系列 3.8mm节距 10路 直角 PCB 针座, 焊接端接 , 通孔 10-P POST HDR D-3100D HORZ .76 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 250 |
| 最大额定电流 | 8 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 25.91 mm |
| 间距 | 3.8 mm | 高度 | 15.93 mm |
| 包装方式 | Bulk | 排间距 | 0.200" (5.08mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 3.81 x 3.81 [.150 x .150] | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold (30) | 安装样式 | Thru Hole |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 29.24 mm |
| 包装数量 | Tube | 主要材料 | Power |
| 端接样式 | Through Hole | 触点数 | 10 |
| 端接表面处理 | Gold over Nickel | 位数 | 10 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | M | 系列 | D-3100D |
| 产品特性 | Board Lock | 编码、键控 | No |
| 制造商全称 | D-3000Series | 产品子类型 | Header |
| 连接类型 | Printed Circuit Board | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
