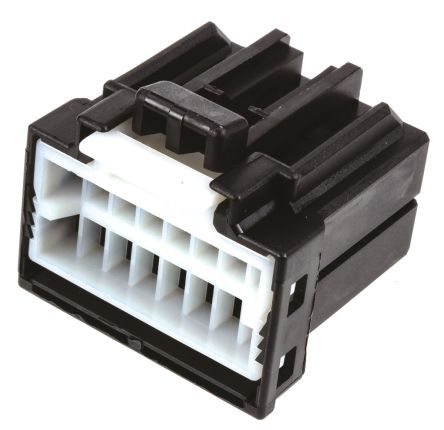

175966-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 16 POS 2.5mm Crimp ST Cable Mount MULTILOCK Connectors and Contacts MULTILOCK PLUG HOUSING 2X8 16POS Housing,plug,straight,2.5mm,16w Automotive Connectors 040 MLC II PLUG HSG ASSM 16P Conn Housing PL 16 POS 2.5mm Crimp ST Cable Mount Product Highlights:HousingPlug040 Plug ConfigurationNumber of Rows = 2Number of Positions = 16Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, TE Connectivity Multilock 040 II 系列 2 行 2.5mm 节距 16 路 直 公 PCB 壳体 040 MLC II PLUG HSG ASSY 16P |
| 分类 |
商业参数
| 产品 | Housings | 其他名称 | Q2391687B |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 否 | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Black | 深度 | 23mm |
| 间距 | 2.5 mm | 宽度 | 18 mm [ .709 in ] |
| 高度 | 23 mm [ 0.906 in ] | 长度 | 23.3mm |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.205" (5.20mm) |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.205" (5.20mm) | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 锁定特性 | Rear Lock | 壳体材料 | PBT |
| 安装特性 | 否 | 包装数量 | 100 |
| 面板安装类型 | Without | 主要材料 | PBT |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | 连接器/触点类型 | 40 |
| 接触件表面处理 - 配合 | 否 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 第二连接器加载位数 | 16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 040 Mark II |
| 极性 | 是 | 可密封 | 否 |
| 可维修 | 否 | 编码、键控 | No |
| 产品子类型 | Housing | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Signal | 适用产品/相关产品 | MULTILOCK Wire-to-Board Connector |
环境参数
| 工作温度 | -30 – 105 °C [ -22 – 221 °F ] | ||
