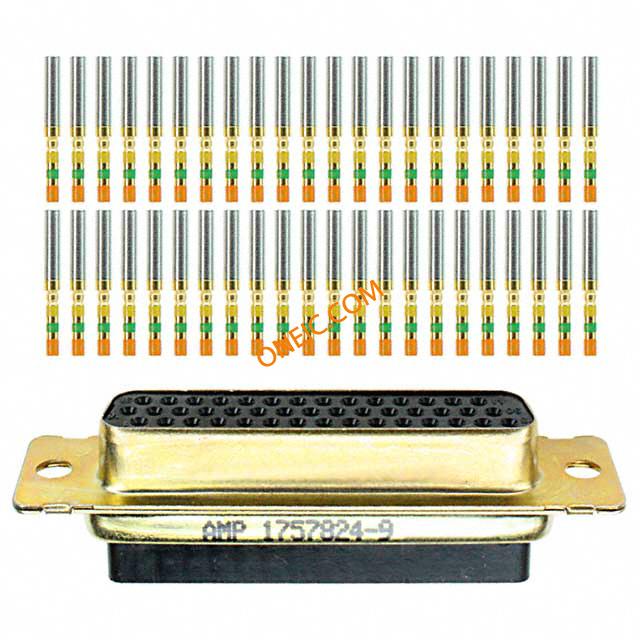

1757824-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 44 POS Crimp ST Cable Mount 44 Terminal 1 Port Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HD 44P SER 90 Conn High Density D-Sub SKT 44 POS Crimp ST Cable Mount 44 Terminal 1 Port Conn High Density D-Sub SKT 44 POS Crimp ST Cable Mount 44 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 44Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, HIGH DENSITY, 44POS, RCPT Conn;D-Sub;CableSocket;44Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,RCPT,STD,90,ZN,3,CT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 资质认证 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 90 Series | 连接器阻抗 | No |
| 最大额定电流 | 7.5A | ||
机械参数
| 深度 | 17.06 mm | 高度 | 12.92 mm |
| 重量 | 0.014 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | No | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Cadmium | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Mounting Holes |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Polyphenylene Sulfid |
| 总长度 | 53.41 mm | 主要材料 | D-Subminiature |
| 触点数 | 3 | 接触件端接 | :Crimp |
| 位数 | 44 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 3 (DB, B) High Density | ||
产品信息
| 备注 | Size 22 sockets supplied with receptacles are loose piece.; | 类型 | High Density D-Sub |
| 连接器性别 | Receptacle | 系列 | 90 |
| 密度 | High | 插座类型 | With |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 Port |
| 设备部件号 | M24308/2-13 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
