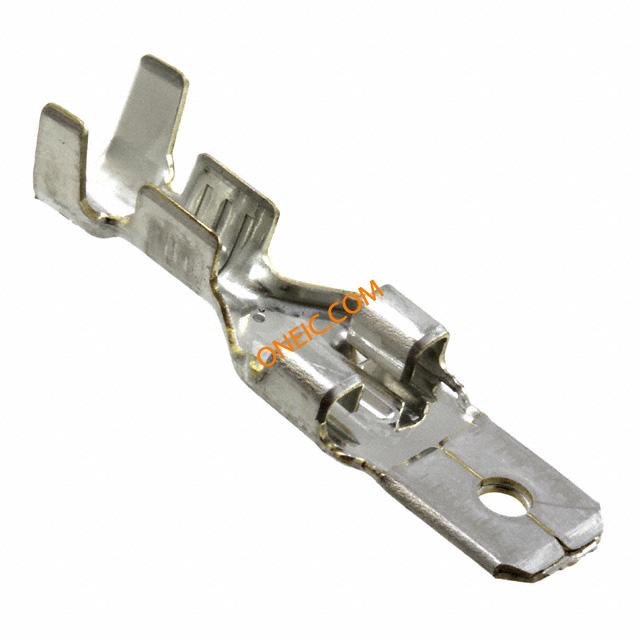

175179-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Tab Terminal 16-20AWG M 21.1mm 4.6mm Pre-Tin Strip Positive Lock Connectors CONN UNINS RCPT 16-20AWG 0.187 Positive lock,tab,20-16awg,4.75 x 0.61 Automotive Connectors .187 POSITIVE LK TAB Tab Terminal 16-20AWG M 21.1mm 4.6mm Pre-Tin Strip Product Highlights:TabTab Fit = 4.75 x 0.61 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 187 22-16 AWG 0.30 X 14.0 PTBR |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A107109CT |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
机械参数
| 表面处理 | Pre-Tin | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 4.75 x 0.61 [.187 x .024] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | No | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | Mark II | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | 公端 |
| 适用端子尺寸 | 1.9 – 3.4 mm [ .075 – .134 in ] | 绝缘直径 | 1.90-3.40 [.074-.133] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 线规或范围 - AWG | 20-16 | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 外径-未扩张 | 3.4 mm [ .134 in ] | ||
产品信息
| 连接器性别 | Female | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 产品子类型 | Tab |
环境参数
| 工作温度 | -40 – 105 | ||
