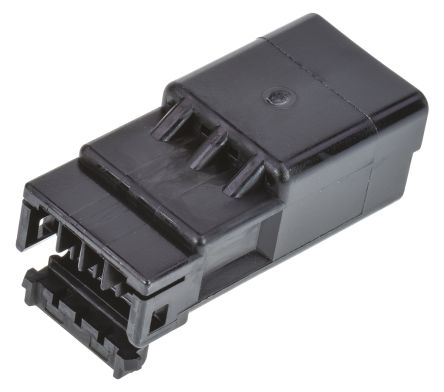

点击放大查看
174967-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.5mm Crimp ST MULTILOCK Connectors and Contacts CONN RCPT HOUSING 4POS BLACK 4 way Multilock 040 cable cap housing Headers & Wire Housings MULTILOCK CAP HSG Conn Housing RCP 4 POS 2.5mm Crimp ST Product Highlights:HousingReceptacle (Cap)Receptacle Configuration = 040Number of Rows = 1Number of Positions = 4Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CAP HOUSING, 4 WAY 4WAYCAPHOUSING TE Connectivity Multilock 040 系列 2.5mm 节距 4 路 直 母 PCB 壳体 040 MLC CAP HSG 4P BLACK |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 击穿电压 | :1000V | 最大额定电流 | :8A |
| 绝缘电阻 | :100ohm | ||
机械参数
| 颜色 | Black | 深度 | 29.1mm |
| 间距 | 2.5 mm | 宽度 | 14.8mm |
| 长度 | 13.5mm | 重量 | 0.002 |
| 包装方式 | Tube | 触头类型 | Tab |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 释放力 | :10N |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | 40 | 锁定特性 | Hinge Lock |
| 壳体材料 | PBT | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装类型 | :Cable |
| 第二连接器加载位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 40 |
| 编码、键控 | No | 产品子类型 | Housing |
| 按键数 | :4 | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector |
环境参数
| 工作温度 | :105°C | ||
