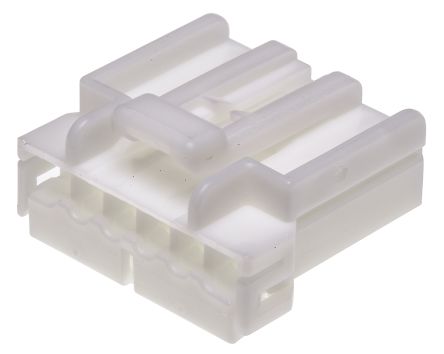

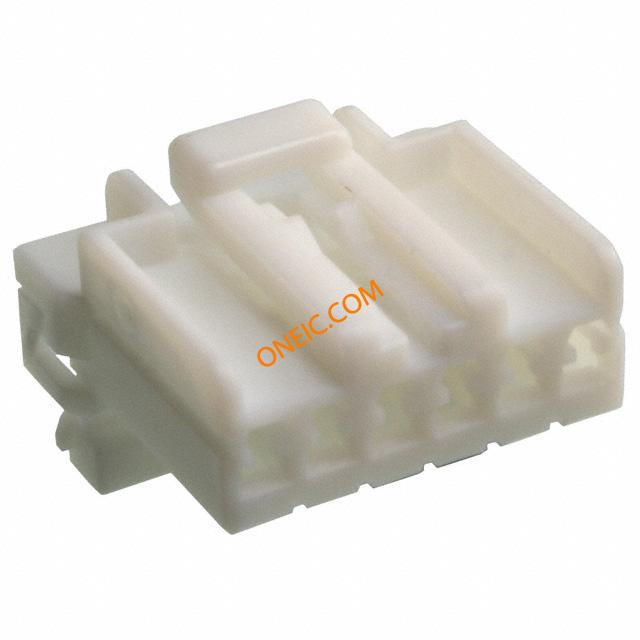

174923-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 3.5mm Crimp ST Cable Mount Headers & Wire Housings 6P MLC PLUG MULTILOCK Connectors and Contacts CONN PLUG HOUSING 6POS WHITE 6-way Multilock 070 1-row plug housing Conn Housing PL 6 POS 3.5mm Crimp ST Cable Mount Product Highlights:HousingPlug070 Plug ConfigurationNumber of Rows = 1Number of Positions = 6Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, 6-wayMultilock0701-rowplughousing TE Connectivity Multilock 070 系列 3.5mm 节距 6 路 直 公 PCB 壳体 070 MLC PLUG 6P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 开关功能 | Latched | 供电电压 | 12 |
| 标称电压 | 12 | 连接器阻抗 | 否 |
机械参数
| 颜色 | White | 深度 | 21.6mm |
| 间距 | 3.5 mm | 宽度 | 15.9mm |
| 高度 | 15.9 mm | 长度 | 24.4mm |
| 锁定类型 | 外壳集成 | 包装方式 | Bulk |
| 出线方向 | 否 | 方向 | 直 |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 安装样式 | Free Hanging | 排数 | 1 |
| 锁定特性 | Hinge Lock | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 24.4 mm | 安装特性 | 否 |
| 包装数量 | 100 | 面板安装类型 | Without |
| 主要材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 连接器/触点类型 | 70 | 接触件表面处理 - 配合 | 是 |
| 法兰上方插针尺寸 | 1.8 mm [ .071 in ] | 第二连接器加载位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 70 |
| 极性 | 是 | 可密封 | 否 |
| 可维修 | 是 | 编码、键控 | No |
| 产品子类型 | Receptacles / Sockets - Housings | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 应用细节 | Signal |
| 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector | ||
环境参数
| 防护等级 | 其他 | 工作温度 | -30C to 105C |
文档与媒体
相关型号
173630-1
te connectivity / amp
