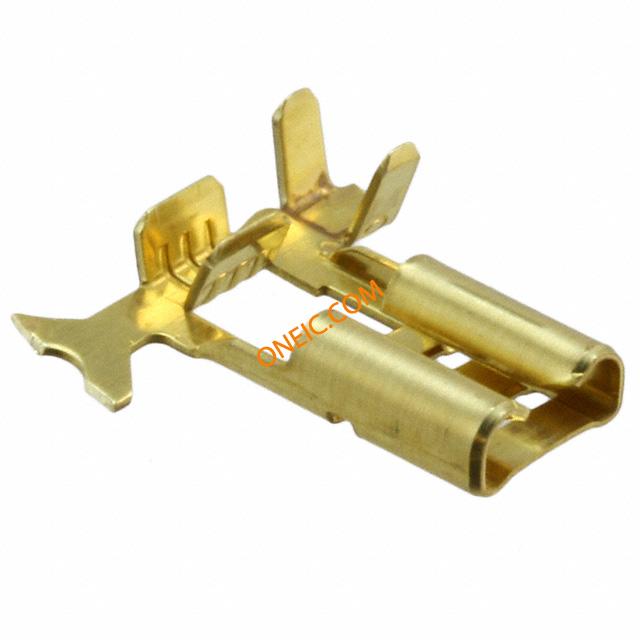

点击放大查看
1742087-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 11.3mm Strip Terminals 187 F-CMP FLAG RCPT22-18 012BR FASTON Terminals - Premier & Commercial CONN RECPT FLAG 18-22AWG 0.187 FASTON Uninsulated Receptacles & Housings FASTON Uninsulated Receptacles & Housings Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 18-22AWG 0.187 FASTON 187 18-22AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111057CT |
| 标准包装规格 | 15,000 | 标准包装数量 | 30,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
| 连接器阻抗 | 4.75 x 0.81 | 额定电流（安培） | 单 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 0.187" (4.75mm) |
| 厚度 | 0.3 | 电缆类型 | Stranded |
| 绝缘类型 | Non-Insulated | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 安装类型 | No |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Receptacle |
| 连接器类型 | 是 | 接触镀层 | 无镀层 |
| 连接器样式 | Flag | 箔压接区域 | F-Crimp |
| 插入力 | Standard | 触头材料 | Brass |
| 总长度 | Budget | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | 预算 |
| 适用端子尺寸 | 1.52 – 2.8 mm [ .06 – .11 in ] | 绝缘直径 | 1.52-2.79 [.060-.110] |
| 绝缘材料 - 类型 | 是 | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 0.30-0.90² [22-18] |
| 第二连接器安装特性 | No | 外径-未扩张 | 2.8 mm [ .11 in ] |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | Tyco Electronics | 产品子类型 | Terminal |
| 其他规格 | 线缆 | ||
