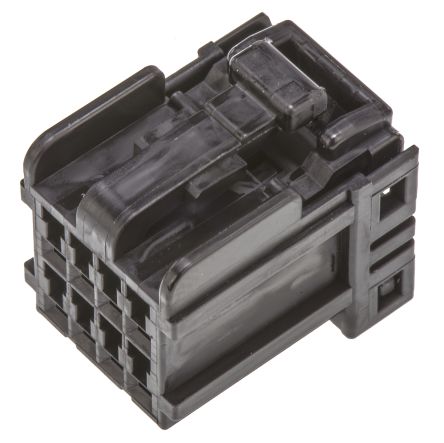

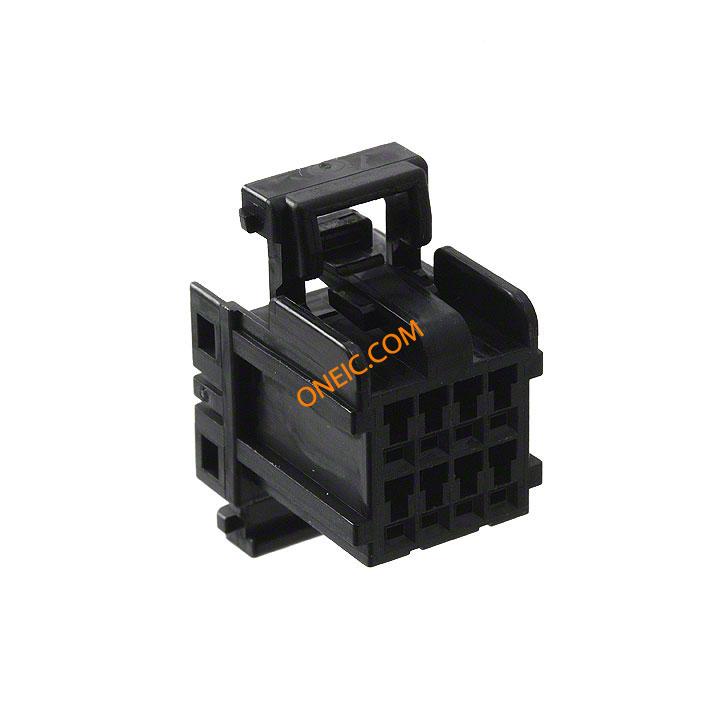

174044-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 2.5mm Crimp ST Cable Mount MULTILOCK Connectors and Contacts CONN PLUG HSNG 8POS DUAL BLACK 8 way Multilock 040 cable plug housing Automotive Connectors 8P PLUG HOUSING Conn Housing PL 8 POS 2.5mm Crimp ST Cable Mount Product Highlights:HousingPlug040 Plug ConfigurationNumber of Rows = 2Number of Positions = 8Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, PLUG HOUSING, 8 WAY 8wayMultilock040cableplughousing TE Connectivity Multilock 040 系列 2 行 2.5mm 节距 8 路 直 公 PCB 壳体 040 MLC PLUG HSG 8P BLACK |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 击穿电压 | :1000V | 最大额定电流 | :8A |
| 绝缘电阻 | :100ohm | ||
机械参数
| 颜色 | Black | 深度 | 18.5mm |
| 间距 | 2.5 mm | 宽度 | 26.1mm |
| 高度 | 26.1 mm | 长度 | 14mm |
| 重量 | 0.1 | 包装方式 | Bulk |
| 排间距 | 0.205" (5.20mm) | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 释放力 | :10N |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 2 |
| 锁定特性 | Hinge Lock | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 14 mm | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | 连接器/触点类型 | 40 |
| 第一连接器安装类型 | :Cable | 第二连接器加载位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 40 |
| 编码、键控 | No | 产品子类型 | Housing |
| 按键数 | :8 | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | MULTILOCK Wire-to-Board Connector |
环境参数
| 工作温度 | -30C to 105C | ||
