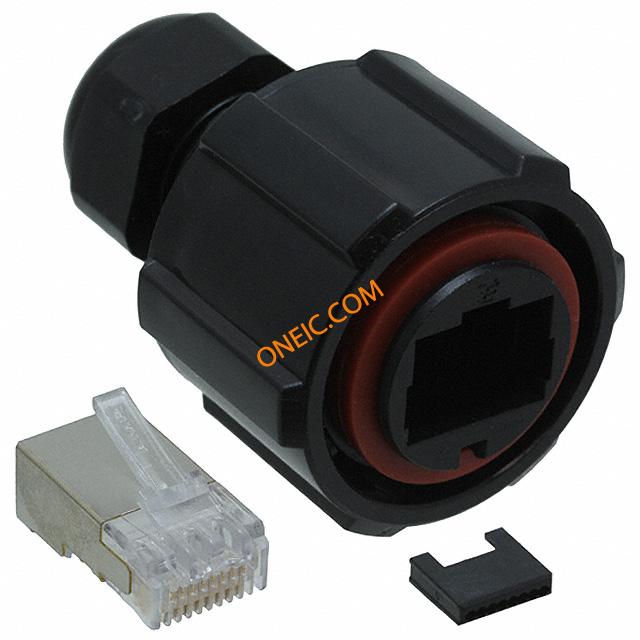

1738607-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Standard Circular Connector KIT, PLUG, SOL WIRE, Shielded Industrial Communication Products CONN MOD PLUG 8P8C SHIELDED Connector, plug, RJ45, shielded, kit Modular Connectors / Ethernet Connectors KIT, PLUG, SOL WIRE, Shielded Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Product Highlights:Plug KitShieldedWire Size = 0.12-0.2² [26-24] mm² [AWG]Mount Type = Cable MountSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 CONNECTOR, RJ45, PLUG, 8POS, CABLE CONNECTOR,PLUG,RJ45 TE Connectivity 直 公 RJ45 连接器 , 电缆安装型 KIT, PLUG, SOLID WIRE, Shielded |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 接口 | Open Device-Net Vendors Association (ODVA) | ||
机械参数
| 颜色 | Translucent - Clear | 深度 | 31.5mm |
| 长度 | 2.323" (59.00mm) | 重量 | 0 |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 导线类型 | Solid | 电缆类型 | Round Cable, Solid Wires |
| 导线线规 | 0.12-0.2² [26-24] | 方向 | Straight |
| 外壳样式 | Plug | 屏蔽类型 | Yes |
| 端接方式 | Crimp | 外壳颜色 | Clear |
| 安装类型 | Cable Mount | 外壳镀层 | Semi-Bright Nickel |
| 连接器类型 | :RJ45 | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 连接器样式 | Plug |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate GF | 主要材料 | Phosphor Bronze |
| 触点数 | 8 | 接触件端接 | :IDC / IDT |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | For solid wire only. | 类型 | RJ-45 |
| 连接器性别 | PL | 系列 | :- |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ 45 |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connectors |
| 图案编号 | RJ45 | 端口数 | 1 |
| 其他规格 | Cable | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
