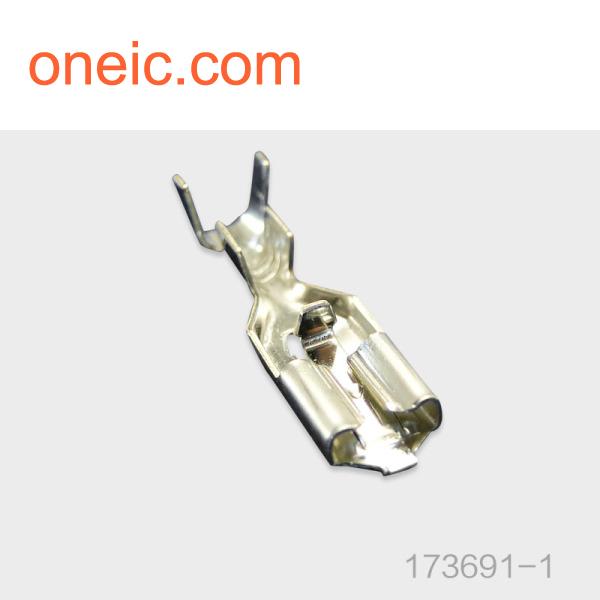

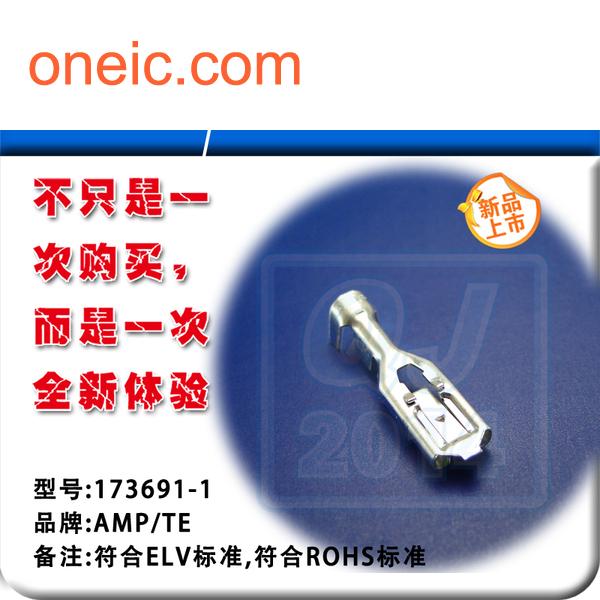

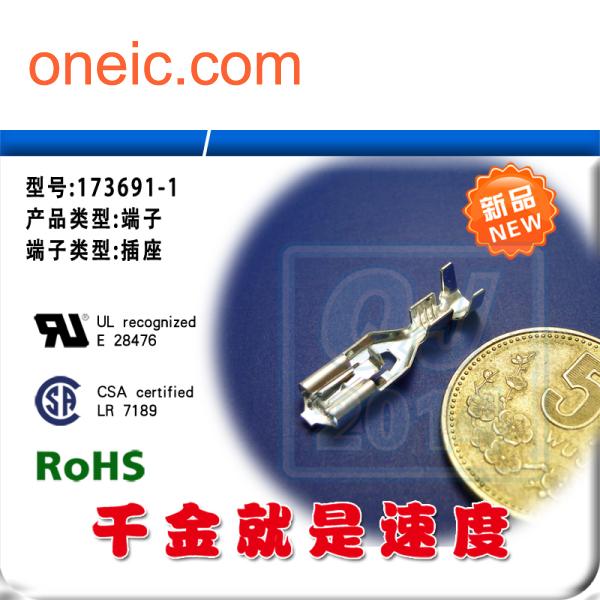

173691-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 21.6mm 5.6mm Pre-Tin Strip Headers & Wire Housings RCPT STR 20-16 .187 Positive Lock Connectors TERM RCPT STR 20-16AWG .187 Posi Lock .250,Contact,Rcp,0.50-1.40mm² Receptacle contact, Positive Lock (REEL) Terminals RCPT STR 20-16 .187 Quick Disconnect Terminal 16-20AWG RCP 21.6mm 5.6mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONN QC RCPT 16-20AWG 0.187 CONTACT,RCP,0.50-1.40MMª TE Connectivity Positive Lock .187 Mk II 系列 压接插座 , 4.75 x 0.81mm, 镀锡触芯 PL 187 REC 20-16 AWG 0.3 X 14.0 PTBR |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A116211CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 18,000 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | Pre-Tin | 长度 | 21.6mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.236" (6.00mm) | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 重量（g） | 9 |
| 安装类型 | Free Hanging (In-Line) | 释放力 | .7 – 10.2 |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 1.3mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | Mark II | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 1.9 – 3.4 mm [ .075 – .134 in ] | 绝缘直径 | 1.90-3.40 [.074-.133] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 焊盘布局尺寸 | 4.75 x 0.81mm | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 16AWG |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 外径-未扩张 | 3.4 mm [ .134 in ] |
产品信息
| 名称 | 端子 | 单位 | PCS |
| 连接器性别 | Female | 系列 | 187 |
| 数量 | 18000.0 | 编码、键控 | No |
| 产品子类型 | Receptacle | 制造国家 | 中国 |
| 设备部件号 | 173691-1.pdf | 最小起订量 | 1 |
