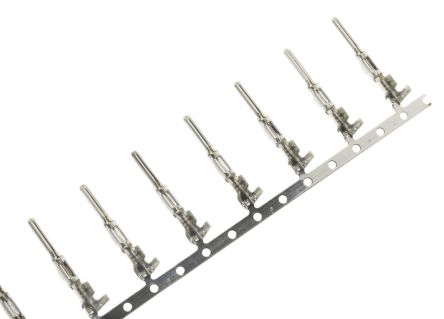

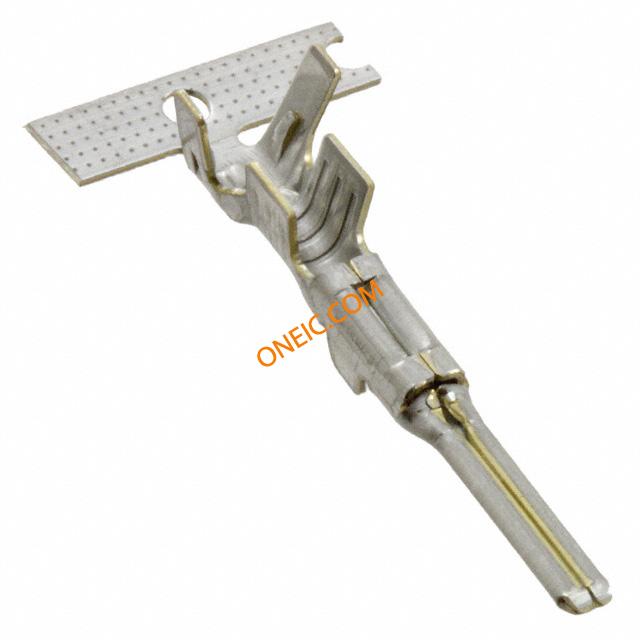

173645-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip MULTILOCK Connectors and Contacts CONN TAB CONTACT 16-20AWG 070 Contact, Tab, Multilock, 20-16 AWG Automotive Connectors 070MLC PIN 20-16 Reel of 3000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireTab Width = 1.78 mmTabWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CONTACT, TAB, 20-16AWG 070Contact,Tab,Multilock,20-16AWG TE Connectivity Multilock 070 系列 公 压接接线端子, 压接, 镀锡触点 070 TAB CONT 16-20 |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A104961CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 10mΩ | ||
机械参数
| 深度 | 5 | 间距 | 5 mm |
| 高度 | 4.7 | 重量 | 0.02 |
| 包装方式 | Strip | 插片宽度 | 1.78 [0.07] |
| 导线线规 | 16-20 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | :16 |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Tab |
| 卡扣方向（或“接线片方向”） | Tab | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 20.7 mm | 包装数量 | Strip |
| 端接样式 | Crimp | 第一触头极性 | :Pin |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 2.01 â 2.59 [0.079 â 0.102] | 线规或范围 - AWG | 20-16 |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | 70 | 产品特性 | Connectors and Contacts |
| 产品子类型 | Contact | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | :MULTILOCK Connectors |
环境参数
| 可用温度范围 | -30to+105°C | 结工作温度 | 105°C |
