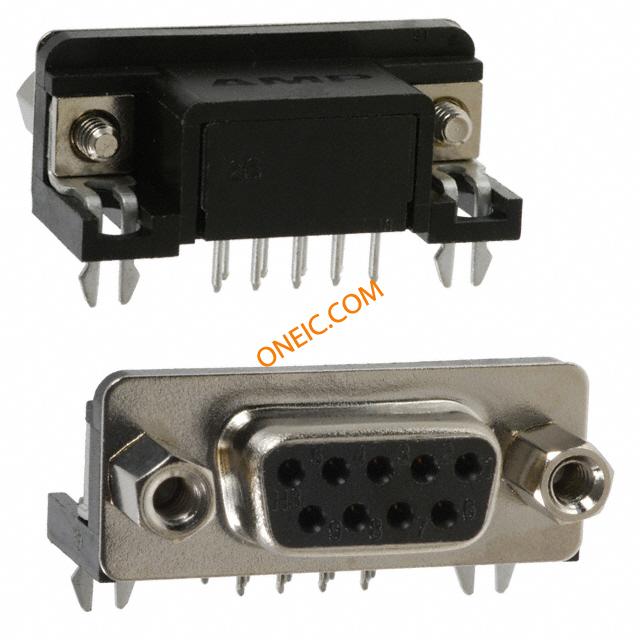

1734354-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors HD20 9P 318 RA RCPT AU 15U SL Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS 15GOLD Conn D-Subminiature SKT 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 9 路 直角 印刷电路板安装 PCB D-sub 连接器 插座 HD20,9P,318 RA,RCPT,AU 15u",SL |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 990 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 深度 | 18.4 mm |
| 间距 | 2.77 mm | 高度 | 12.5 mm |
| 密封型 | No | 重量 | 0.00001 |
| 镀层 | Tin over Nickel | 包装方式 | Bulk |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | SPCC |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Metal |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon GF | 总长度 | 30.8 mm |
| 包装数量 | Tray | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | Without |
| 外形尺寸 长x宽x高 | 8.08 [.318] | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 9 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 9 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 15µin (0.38µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
