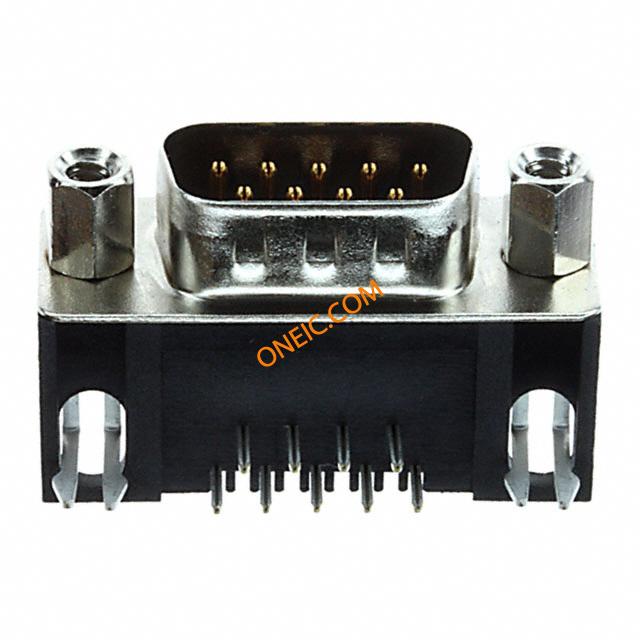

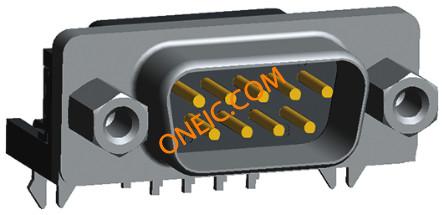

点击放大查看
1734351-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors 8.08mm PLUG 9P 15U R/A Standard Board Mount Connectors CONN D-SUB PLUG R/A 9POS 15GOLD AMPLIMITE HD-20 d-sub PCB plug, 9 pin Conn D-Subminiature PIN 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG HD20PRODUCTSRESALE,D-SUB8.08MM,PLUG,R/A,9POS,15U |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 990 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 250V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 深度 | 12.5mm |
| 间距 | 2.77 mm | 长度 | 30.8mm |
| 密封型 | No | 重量 | 0.00001 |
| 镀层 | Matte Tin | 包装方式 | Bulk |
| 外壳尺寸 | 1 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | With | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 锁定特性 | Female Screwlocks, 4-40 UNC | 本体材料 | :Metal |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | SPCC | 面板安装类型 | Without |
| 尺寸/外形 | 0.62 [.024] | 接地凹痕 | With |
| 外形尺寸 长x宽x高 | 8.08 [.318] | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 9 |
| 接触件端接 | :Through Hole Vertical | 位数 | 9 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 15µin (0.38µm) | 螺钉材料 - 镀层 | Brass |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Board Lock, Grounding Indents | 制造商全称 | AMP |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -55°C ~ 105°C |
