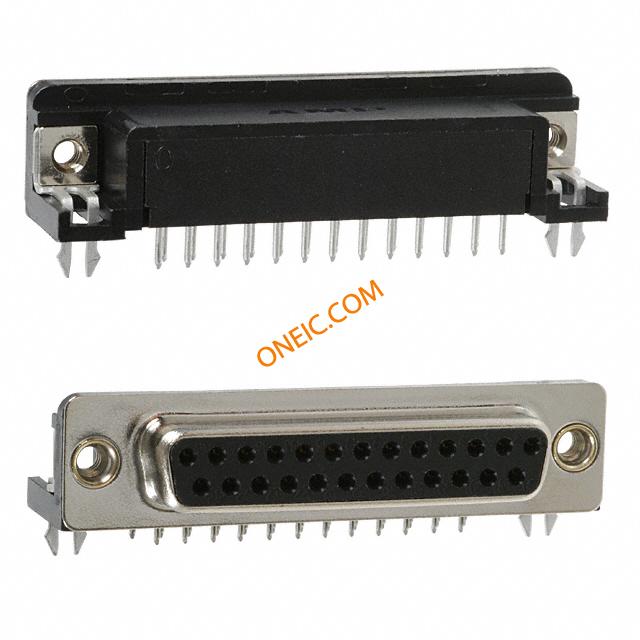

1734350-1

点击放大查看

1734350-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port Tray D-Sub Standard Connectors HD20 25P 318 RA RCPT AU FL Standard Board Mount Connectors CONN DSUB RCPT R/A 25POS GOLD/FL AMPLIMITE HD-20 d-sub PCB socket, 25 way Conn D-Subminiature SKT 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port Tray Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, R/A, 25WAY Conn;D-Sub;PCBSocket;25Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 25 路 直角 通孔安装 PCB D-sub 连接器 插座 HD20,25P,318 RA,RCPT,AU FL,PBT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite 2000 Series
额定电压250V工作电压:250V
最大额定电流2A最小供电电压250VAC

机械参数

颜色Black深度18.5mm
间距2.77 mm宽度12.5mm
高度12.5 mm长度53.1mm
密封型No重量0.001
镀层Tin-lead材料（通用）:Steel
包装方式Bulk外壳尺寸3
端接方式Solder触头类型Signal
第二连接器With触点形状Round
安装类型Through Hole外壳镀层Nickel
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型With
安装样式Through Hole排数2
壳体镀层:Gold外壳材料（壳体）Steel
电路板厚度0.062 [1.57]连接器样式D-Sub
插入件材料Brass锁定特性Threaded Insert, 4-40 UNC
本体材料:Metal材料表面处理Nickel
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic总长度53.1 mm
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without外形尺寸 长x宽x高8.08 [.318]
端接样式Solder连接器颜色None
触点数25接触件端接:Solder
位数25外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Nickel Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳与棱镜材料:SPCC外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
产品特性Board Lock制造商全称AMP
端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
