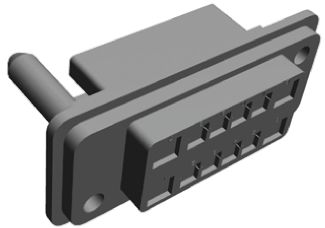

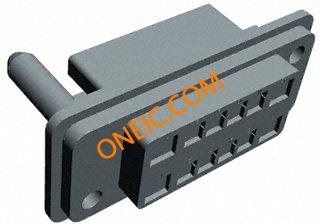

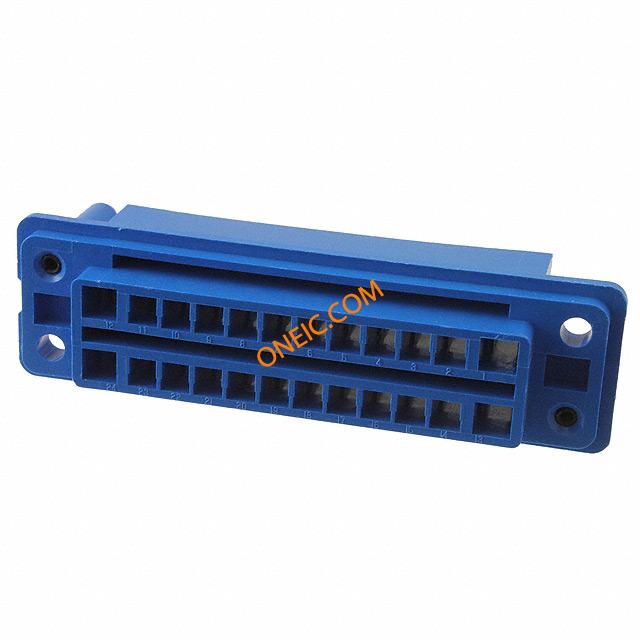

172624-3
| 制造商 | |
| 描述 | Conn Housing RCP 24 POS 5mm Crimp ST Drawer Connectors DRAWER CONN. MALE 24P 4.3MM Drawer,Blindmate,housing,male,24way Heavy Duty Power Connectors DRAWER CON ML 24P 4.3MM Drawer Connectors Product Highlights:HousingPlugDrawer Style = StandardNumber of Positions = 24Not PreloadedSearch Keywords:NIC, Network Interface Cards, PC Cards, card edge, 1.0 mm Micro-Drawer, MPD, TE Connectivity Blind Mate 系列 2 行 5mm 节距 24 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 标准包装规格 | 100 | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 | 连接器阻抗 | 压接 |
| 最大额定电流 | 15 | 输出高/低电流 | No |
机械参数
| 颜色 | Blue | 深度 | 32.5mm |
| 间距 | 5 mm | 宽度 | 26.3mm |
| 高度 | 26.3 mm [ 1.035 in ] | 长度 | 91.2mm |
| 包装方式 | Bulk | 壳体颜色 | 蓝色 |
| 导线线规 | 14 – 24 | 方向 | 直 |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Blindmate | 法兰特征 | 否 |
| 安装样式 | 不带 | 排数 | 2 |
| 连接器样式 | Drawer | 连接器用途 | Plug |
| 插入件材料 | 磷青铜 | 插入力 | Male |
| 面板厚度 | 1.60 [0.063] | 壳体材料 | PBT |
| 面板安装类型 | 带有 | 端接样式 | Panel |
| 触点数 | 24 | 位数 | 24 |
| 触头长度-柱 | 电源 | 安装孔直径 | 4.30 [.169] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 172624 |
| 产品特性 | Guide Pin | 预加载 | No |
| 产品子类型 | Housing | 抽屉总数 | Standard |
| 列数 | 12 | 其他规格 | 6.6 |
| 适用产品/相关产品 | Standard Drawer Connector | ||
环境参数
| 工作温度 | -20 – 120 | ||
文档与媒体
相关型号
