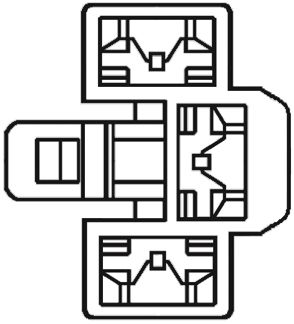

点击放大查看
172220-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 6.2mm Crimp ST Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN RCPT HSG 3POS .250 NATURAL Housing, plug, 3 way, 250 lance, natural Automotive Connectors 250 INTER LOCK HSG PLUG 3P Conn Housing PL 3 POS 6.2mm Crimp ST Cable Mount Conn Housing PL 3 POS 6.2mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 3PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, 250,HSNG,CAP,LANCE,2W TE Connectivity FASTON .250 系列 3 触点 尼龙 压接外罩 FF 250 PLUG HSG 3P NYLON NAT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Natural | 间距 | 6.2 mm |
| 长度 | 21.4mm | 材料（通用） | Nylon |
| 包装方式 | 袋 | 导线线规 | 12-22 AWG |
| 外壳样式 | With | 基体材料 | Nylon |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Receptacle |
| 排数 | 1 | 封装形式 | Receptacle Housing |
| 连接器用途 | Wire/Cable | 壳体材料 | Nylon |
| 包装数量 | 100 | 主要材料 | 尼龙 |
| 连接器颜色 | Natural | 触点数 | 3 |
| 堆叠方向 | Multiple | 位数 | 3 |
| 线规或范围 - AWG | 12AWG | 线规或范围 - mm² | 22AWG |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | FASTON .250 | 产品子类型 | Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
