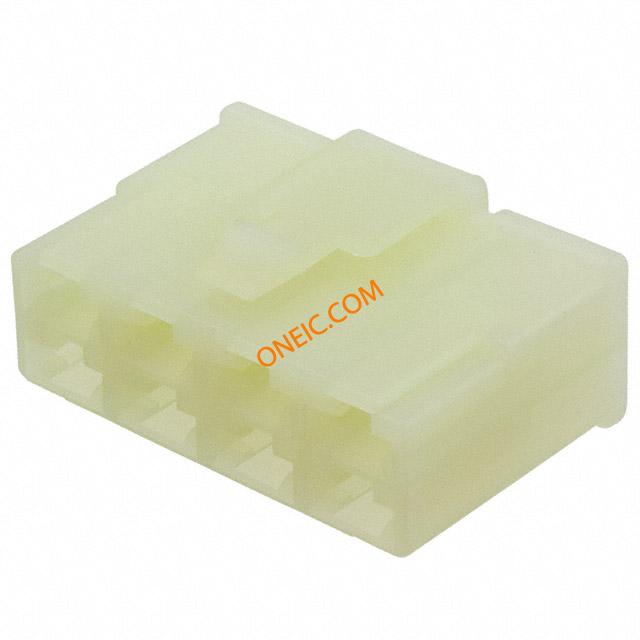

点击放大查看
172136-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 9mm Crimp ST Cable Mount Headers & Wire Housings PLUG 8P F/H NAT Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN PLUG 8POS FREE HANGING NAT Housing, plug, 8 way, 250 lance, natural Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) Product Highlights:HousingNumber of Positions = 8PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, Housing,plug,8way,250lance,natural null TE Connectivity FASTON .250 系列 8 触点 尼龙 压接外罩 FF 250 PLUG HSG 8P NYLON NAT |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Natural | 间距 | 9 mm |
| 长度 | 37mm | 材料（通用） | Nylon |
| 包装方式 | 袋 | 外壳样式 | With |
| 基体材料 | Nylon | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Receptacle | 安装样式 | Cable |
| 排数 | 2 | 封装形式 | Receptacle Housing |
| 连接器用途 | Wire/Cable | 壳体材料 | Nylon |
| 包装数量 | 100 | 主要材料 | 尼龙 |
| 连接器颜色 | Natural | 触点数 | 8 |
| 堆叠方向 | Top to Bottom and Side to Side | 位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | 250 | 产品子类型 | Plugs - Housings |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
