点击放大查看

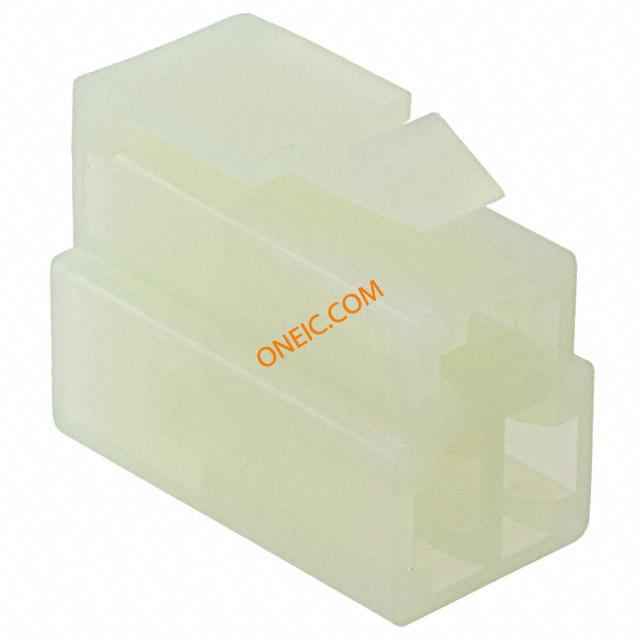

172132-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS Crimp ST Headers & Wire Housings HOUSING PLUG 3P NAT Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN HOUSING PLUG 3POS NATURAL Housing, plug, 3 way, 250 lance, natural Conn Housing PL 3 POS Crimp ST Product Highlights:HousingNumber of Positions = 3PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, Housing,plug,3way,250lance,natural TE Connectivity AMP 250 系列 3 触点 尼龙 66 压接端子外壳 FF 250 PLUG HSG 3P NYLON NAT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 深度 | 25mm |
| 宽度 | 21.1mm | 长度 | 13mm |
| 材料（通用） | Nylon | 包装方式 | 袋 |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | 插头 |
| 安装样式 | Cable | 排数 | 2 |
| 封装形式 | Receptacle Housing | 连接器用途 | Wire/Cable |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 主要材料 | 尼龙 66 | 触点数 | 3 |
| 堆叠方向 | Multiple | 位数 | 3 |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | 250 | 产品子类型 | Plugs - Housings |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
