点击放大查看

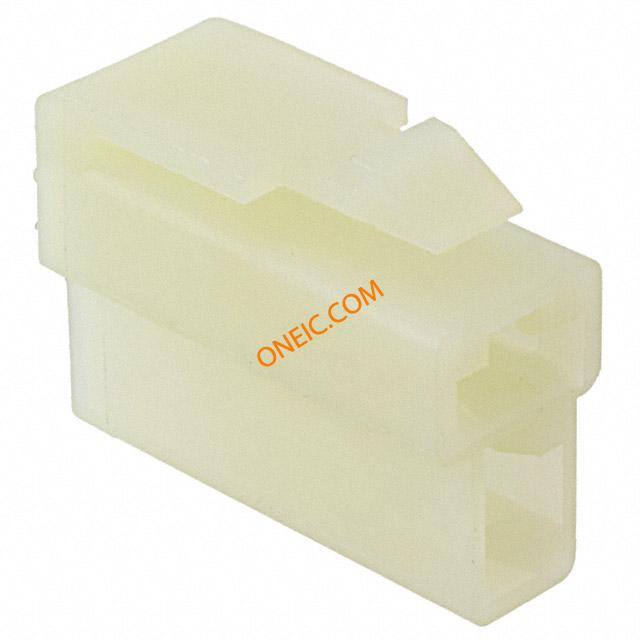

172130-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 6mm Crimp ST Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN HOUSING PLUG 2POS NATURAL Housing, plug, 2 way, 250 lance, natural Headers & Wire Housings PLUG 2P NATURAL Conn Housing PL 2 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 2PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, HOUSING, PLUG, FREE HANGING, 2WAY Housing,plug,2way,250lance,natural 2 Position 2.5 mm Crimp Terminal Free Hanging Plug Housing TE Connectivity AMP 250 系列 2 触点 尼龙 66 压接端子外壳 FF 250 REC HSG 2P NYLON NAT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 开关功能 | Latched | ||
机械参数
| 颜色 | Natural | 深度 | 25mm |
| 间距 | 6 mm | 宽度 | 10mm |
| 高度 | 19.9 mm | 重量 | 0.02 |
| 材料（通用） | Nylon | 外壳颜色 | Natural |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 10 mm | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 堆叠方向 | Perpendicular |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | 172130 | 产品子类型 | Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
