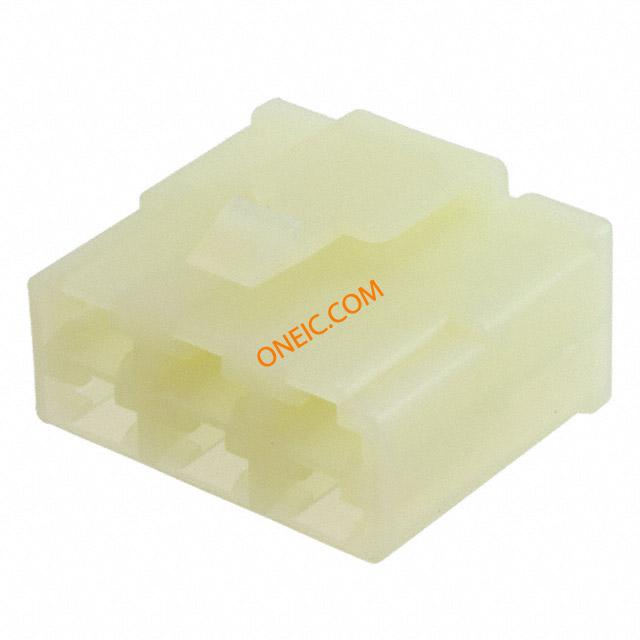

点击放大查看
171898-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 9mm Crimp ST Headers & Wire Housings 250 SER PLUG HSG TERMINAL Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN HOUSING PLUG 6POS NATURAL Housing, plug, 6 way, 250 lance, natural Conn Housing PL 6 POS 9mm Crimp ST Product Highlights:HousingNumber of Positions = 6PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, Housing,plug,6way,250lance,natural 250 SERIES PLUG HOUSING 6 POSITION NATURAL COLOUR TE Connectivity FASTON .250 系列 6 触点 尼龙 压接外罩 FF 250 PLUG HSG 6P NYLON NAT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Natural | 深度 | 25 mm |
| 间距 | 9 mm | 高度 | 18.6 mm |
| 长度 | 28mm | 材料（通用） | Nylon |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 导线线规 | 4 | 外壳样式 | With |
| 基体材料 | Nylon | 外壳颜色 | Natural |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Receptacle |
| 安装样式 | Cable | 排数 | 2 |
| 封装形式 | Receptacle Housing | 连接器用途 | Wire/Cable |
| 壳体材料 | Nylon | 总长度 | 28 mm |
| 包装数量 | 100 | 主要材料 | 尼龙 |
| 端接样式 | Crimp | 连接器颜色 | Natural |
| 触点数 | 6 | 堆叠方向 | Top to Bottom and Side to Side |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | 250 | 产品子类型 | Plugs - Housings |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
