点击放大查看

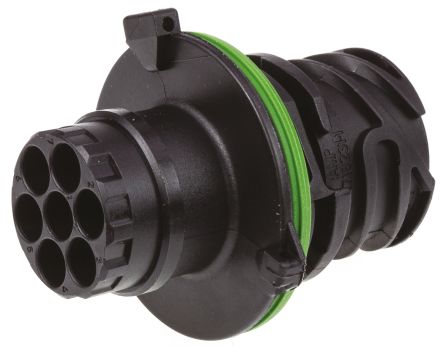

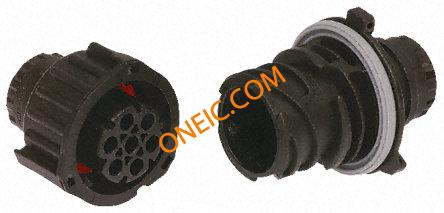

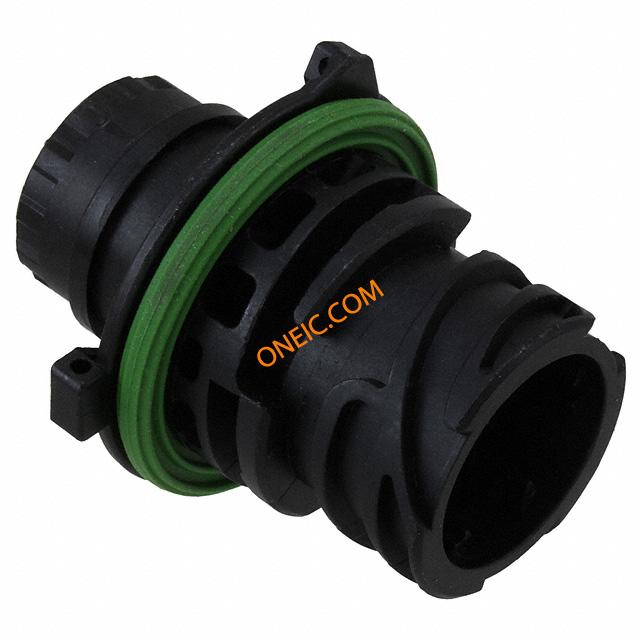

1718230-1
| 制造商 | |
| 描述 | Conn Housing RCP 7 POS Crimp ST Cable Mount Loose Piece 1.5/2.5/4.0mm Pin Diameter Connector System CONN RCPT HSING PIN 7POS CRIMP 7 way DIN 72585 IP67 cable plug,25A Power to the Board HSG SKT 007P F/H BLK Conn Housing RCP 7 POS Crimp ST Cable Mount Loose Piece Product Highlights:Product Series = 1.5 mm SystemHousingPinCircular Contact LayoutNumber of Positions = 7 PIN HOUSING, 7 WAY, 1.5MM 7wayDIN72585IP67cableplug,25A Socket; Connector: circular; 1.5mm System; male; PIN:7; on panel TE Connectivity 7 路 直 公 电缆安装 PCB 壳体 1,5MM PIN HSG 5-7 POS ASSY |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :- | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 深度 | 34mm | 长度 | 44mm |
| 重量 | 0.015 | 包装方式 | Bulk |
| 方向 | A | 触点尺寸 | 1.5mm |
| 触头类型 | Crimp | 安装类型 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | :- |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 锁定特性 | bayonet, external bayonet | 触头材料 | :- |
| 壳体材料 | PBT | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 7 |
| 接触件端接 | :PCB | 位数 | 7 |
| 外壳材料及表面处理 | Polybutylene Terephthalate (PBT) | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 1718230 | 极性 | A |
| 产品子类型 | Plug Housings | 适配器系列 | 1.5mm System |
| 单元数量 | 1 | 适用产品/相关产品 | Connector System |
