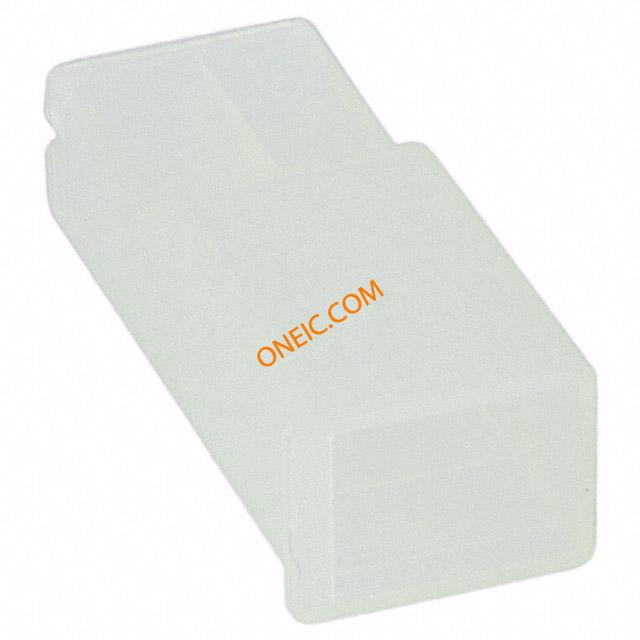

171809-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HOUSING 1POS .250 Positive Lock,Housing,plug,1way Headers & Wire Housings 1P POSITIVELOCK HSG Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelockplughousing,1way,6.35mm POSITIVELOCK,HSNG,PLG,1W TE Connectivity Positive Lock Mark I 系列 1 触点 尼龙 压接端子外壳 , 10-20 AWG线规格 |
| 分类 |
商业参数
| 标准包装规格 | 100 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Natural | 深度 | 24.3mm |
| 宽度 | 7.2mm | 长度 | 9mm |
| 材料（通用） | Heat Resistance 66 Nylon | 按键颜色 | None |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 导线线规 | 10-20 AWG | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | 插头 | 安装样式 | Cable |
| 排数 | 1 | 连接器样式 | Straight |
| 壳体材料 | Nylon | 总长度 | Mark I |
| 主要材料 | 尼龙 | 触点数 | 1 |
| 位数 | 1 | 线规或范围 - mm² | 10-20 AWG |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 171809 | 编码、键控 | No |
| 产品子类型 | Receptacle Housing | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
