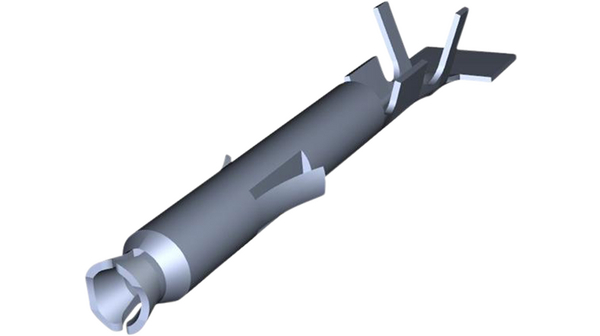

170361-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG TIN CRIMP Contact,crimp,recpt,Mate-n-lok,26-22awg Power to the Board SKT 26-22 AWG REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,SOCKET,MINI-UNIVERSALMATE-N-LOK,26-22AWG Contact; female; 0.12÷0.4mm2; Mini Universal MATE-N-LOK; tinned MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact Crimp contact 7 A Female 22...26 AWG, 170361-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 UNIV M-N-L SOC. 26-22 AWG |
| 分类 |
商业参数
| 其他名称 | A97687CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 6000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 2.8 mm | 间距 | Not Required mm |
| 高度 | 2.9 mm | 重量 | 0.01 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 柱间距 | 4.14mm | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 16.75 mm |
| 包装数量 | 1 | 连接器 - 电缆 | contact |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 线规或范围 - AWG | 26-22 | 线规或范围 - mm² | 0.12...0.4mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1 | 类型 | Stamped |
| 连接器性别 | SKT | 系列 | :Mini-Universal MATE-N-LOK |
| 产品子类型 | Contacts | 适配器系列 | Mini Universal MATE-N-LOK |
| 单元数量 | 6000 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Series Connectors |
环境参数
| 工作温度 | +105°C | ||
