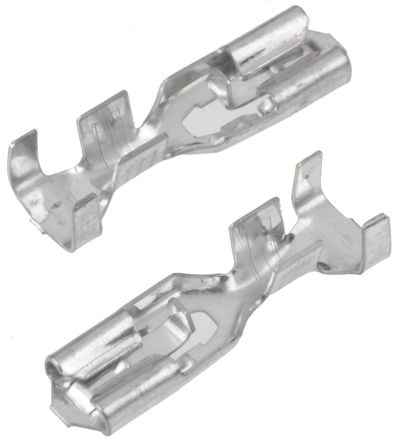

点击放大查看
170332-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 21.6mm 5.7mm Pre-Tin Loose Piece Positive Lock Connectors CONN UNINS RCPT 14-18AWG 0.187 Posi Lock .250,Contact,Rcp,0.80-2.00mm² Headers & Wire Housings 187 POS.LOCK REC. Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PosiLock.250,Contact,Rcp,0.80-2.00mm² TE Connectivity Positive Lock .187 Mk II 系列 压接插座 , 4.75 x 0.51mm, 镀锡触芯 PL 187 RECEPTACLE 18-14 AWG PTPBR |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 标准包装数量 | 36,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
机械参数
| 深度 | 5.7 mm | 表面处理 | Pre-Tin |
| 长度 | 21.6mm | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 释放力 | .7 – 10.2 |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆直径 | 2mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 壳体镀层 | Pre-Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 普通 | 操作力 | 7 – 100 |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 端接样式 | 母端 | 适用端子尺寸 | 2.1 – 3.6 mm [ .082 – .141 in ] |
| 绝缘直径 | 2.10-3.60 [.082-.141], 5.50 [.216] Max. | 绝缘材料 - 类型 | No |
| 总厚度 | .3 mm [ .012 in ] | 焊盘布局尺寸 | 4.75 x 0.51mm |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 线规或范围 - AWG | 14AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 外径-未扩张 | 3.6 mm [ .141 in ] | ||
产品信息
| 备注 | External Diameter of a wire 1.6-3.1mm. | 连接器性别 | Female |
| 系列 | .250 | 编码、键控 | No |
| 制造商全称 | MKII187Series | 产品子类型 | Receptacle |
