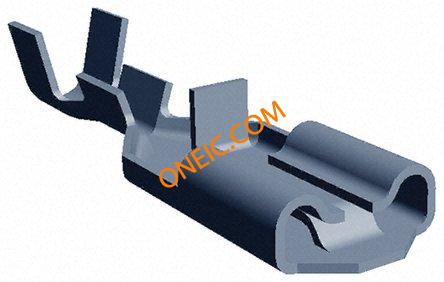

170330-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 20-24AWG RCP 21.6mm 5.6mm Nickel Loose Piece Positive Lock Connectors CONN RCPT 24-20AWG STR .187 Terminal Rec 4.75mm 24-20AWG Posi-Lock Headers & Wire Housings .187 POSITIVE LOCK L .187 POSITIVE LOCK LP .187 POSITIVE LOCK LP Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, TerminalRec4.75mm24-20AWGPosi-Lock TE Connectivity Positive Lock .187 Mk II 系列 压接插座 , 4.75 x 0.51mm, 镀镍触芯 PL 187 RECEPTACLE 24-20 AWG NPPHBZ |
| 分类 |
商业参数
| 标准包装规格 | 500 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 5,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
机械参数
| 表面处理 | Nickel | 长度 | 21.6mm |
| 材料（通用） | Phosphor Bronze | 按键颜色 | None |
| 包装方式 | Bulk | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 电缆直径 | 0.6mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Nickel | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 磷青铜 |
| 插入力 | 低 | 触头材料 | Phosphor Bronze |
| 总长度 | Mark II | 包装数量 | Loose Piece |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 1.5 – 2.7 mm [ .059 – .106 in ] | 触点数 | 4 |
| 绝缘直径 | 1.50-2.70 [.059-.106] | 绝缘材料 - 类型 | No |
| 总厚度 | .3 mm [ .012 in ] | 焊盘布局尺寸 | 4.75 x 0.51mm |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 线规或范围 - AWG | 20AWG | 线规或范围 - mm² | 0.20-0.60² [24-20] |
| 外径-未扩张 | 2.7 mm [ .106 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 编码、键控 | No | 制造商全称 | MKII187Series |
| 产品子类型 | Receptacle | ||
