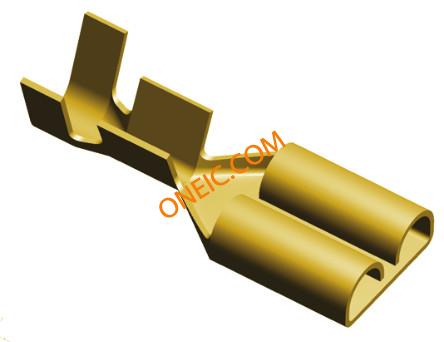

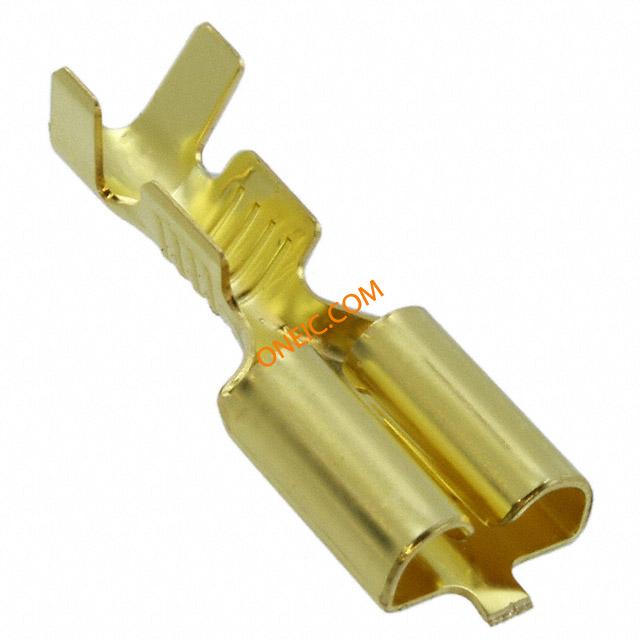

点击放大查看
170031-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-20AWG F 21.5mm 7.5mm Strip Terminals 250X.032 RCPT TYPE CONN UNINS RECPT 14-20AWG 0.250 Fastin-Faston Contact,rcp,0.50-2.00mm² Receptacle terminal,FASTON 250,AWG 20-14 Receptacle terminal FASTON (REEL) Quick Disconnect Terminal 14-20AWG F 21.5mm 7.5mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.80 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.8mm FF 250 REC 20-14AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107089CT |
| 产品类别 | Terminals | 标准包装数量 | 6,000 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 认可国家 | 是 | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 长度 | 21.5mm | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Not Insulated |
| 插片长度 | 0.307" (7.80mm) | 导线线规 | 20-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 2.27mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | 无镀层 |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 普通 | 操作力 | 4.9 – 34.3 |
| 厚度（最大） | .32 | 触头材料 | Brass |
| 总长度 | 0.756" (19.20mm) | 包装数量 | 6000 |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 2.2 – 3.4 mm [ .086 – .134 in ] | 绝缘直径 | 0.087" ~ 0.134" (2.21mm ~ 3.40mm) |
| 绝缘材料 - 类型 | No | 焊盘布局尺寸 | 6.35 x 0.8mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .8 mm [ .031 in ] |
| 堆叠高度（配合） | .93 | 线规或范围 - AWG | 14AWG |
产品信息
| 备注 | 带倒刺。 | 连接器性别 | Female |
| 系列 | 250 | ||
