点击放大查看

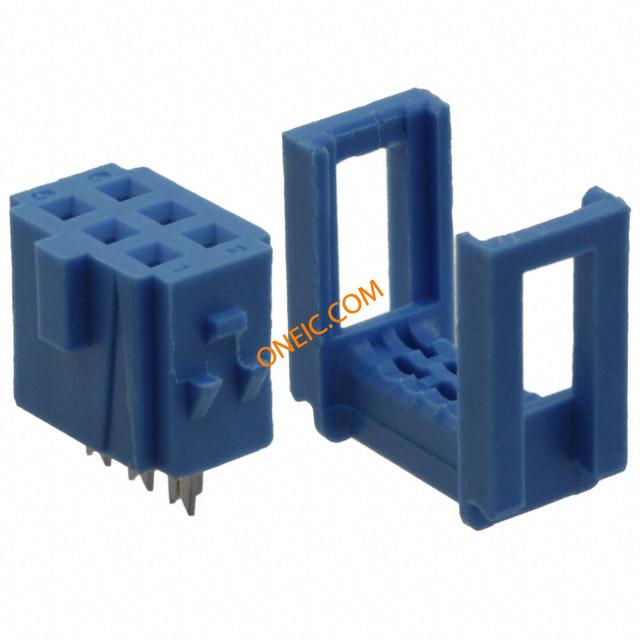

1658527-2
| 制造商 | |
| 描述 | Headers & Wire Housings 6 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 6POS .100 W/STR RELIEF TE Connectivity AMP-LATCH 622 系列 2行 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 622-0630LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 其他名称 | 16585272 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 500 V | 最大额定电流 | 1A |
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 高度 | 0.475 | 长度 | 0.477 |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable - PVC |
| 壳体颜色 | 蓝色 | 出线方向 | Without |
| 电缆类型 | 带状电缆 | 导线线规 | 26 - 28 AWG |
| 方向 | 直 | 排间距 | 2.54 mm |
| 触头类型 | Female Socket | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Vertical |
| 电缆端类型 | Without | 连接器类型 | 622 Series |
| 接触镀层 | Gold | 安装样式 | Free Hanging |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Thermoplastic | 安装特性 | Without |
| 端接排数 | IDC | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 6 |
| 位数 | 6 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Receptacle |
| 系列 | 622 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | 附件类型 | Handtool - 1437000-6; Die - 1437000-9 |
| 连接类型 | Ribbon Cable | ||
环境参数
| 工作温度 | +125°C | ||
文档与媒体
相关型号
2-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE TE Connectivity 2-1761603 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC HDR 6P VERT BLUE LOW PRO Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, IDC, 2.54MM 6WAY HEADER,PIN,IDC,AMP-LATCH,6POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 6P VERT BLUE
2-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 6P VERT LG LAT BLUE Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 6POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, SHROUDEDHDR,MALE,6WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 6P VERT LG LAT
2-1761679-1
te connectivity / amp
Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE Headers & Wire Housings IDC LOW PRO HDR 6P VERT BLUE Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 6P VERT BLUE

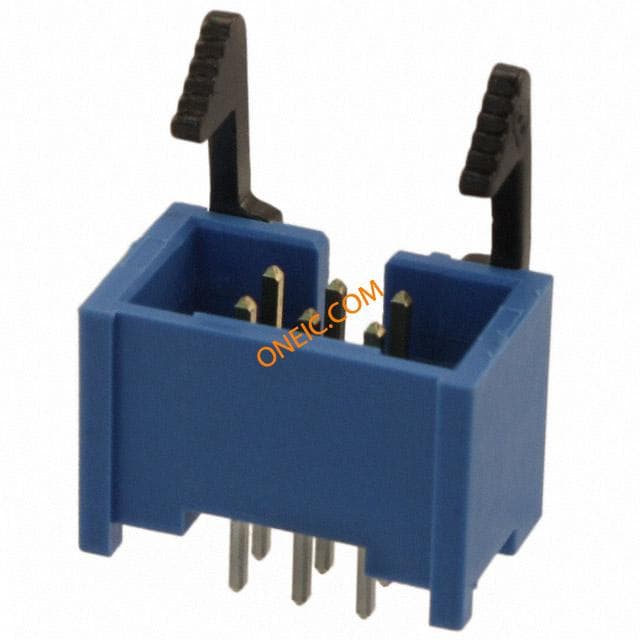

2-1761608-1
te connectivity / amp
Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 6POS VERT GOLD TE Connectivity 2-1761608 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 6P VERT SHT LAT BLUE Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Ejectorheader,6way,2.54mm,PCB180° TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 6P VERT SHT LA

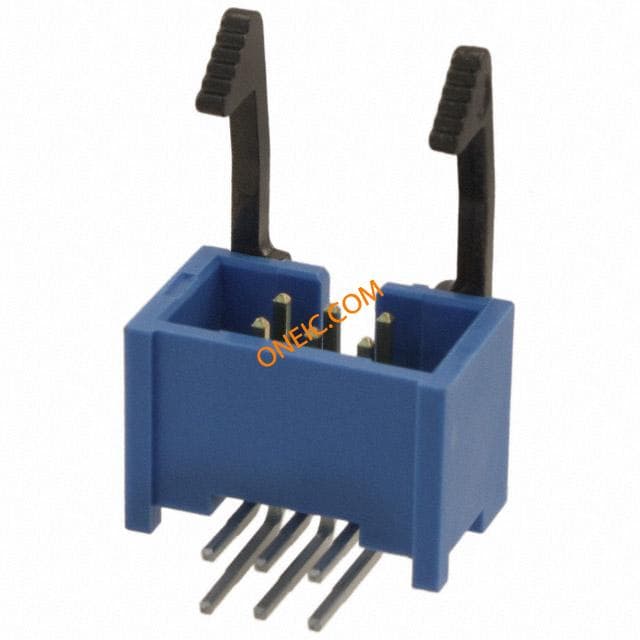

2-1761607-1
