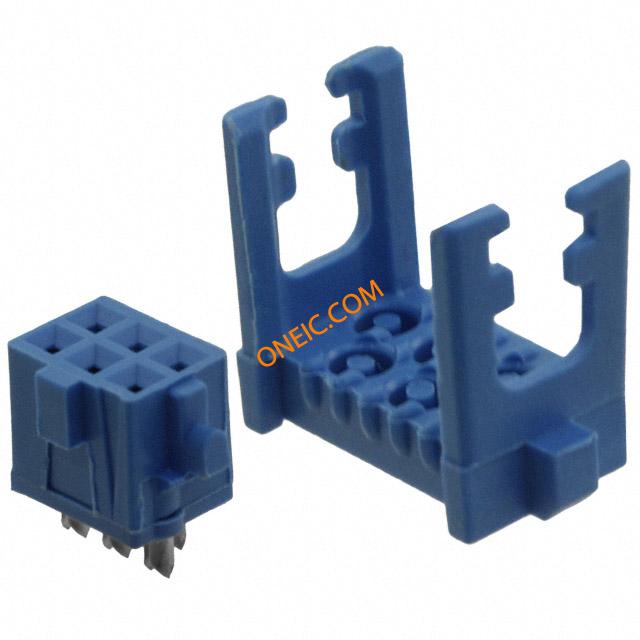

点击放大查看
1658526-2
| 制造商 | |
| 描述 | Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 06 SOCKET W/SR 609-0641LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 6POS VERT GOLD W/SR Ribbon cable conn.fem.6 way,2.54mm,blue Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 6ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization Ribboncableconn.fem.6way,2.54mm,blue TE Connectivity AMP-LATCH 609 系列 2行 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-0641LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 最小起订量 | 50 | 商标名 | AMP-LATCH |
| 单位包装 | 50 | 其他名称 | 16585262 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 30µm GOLDA | ||
机械参数
| 颜色 | Blue | 深度 | 7.05 mm |
| 间距 | 2.54 mm | 高度 | 12.37 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | 2.54 | 导线线规 | 28-30 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Center & Military |
| 第二连接器 | Without | 外壳颜色 | Blue |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | AMP-LATCH | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Thermoplastic Glass Reinforced |
| 总长度 | 12.09 mm | 安装特性 | Without |
| 主要材料 | RibbonCable | 电缆端接方式 | IDC |
| 端接样式 | Solder Pin | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 6 |
| 位数 | 6 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | AMP-LATCH | 产品特性 | Polarizing Key, Strain Relief |
| 匹配码 | 16585262 | 制造商全称 | AMP-LATCH |
| 产品子类型 | Receptacles / Sockets - PCB | 连接类型 | Ribbon Cable |
| 标准交期 | 99 weeks | 带调制解调器控制 | Yes |
环境参数
| 工作温度 | PLASTIC°C | ||
