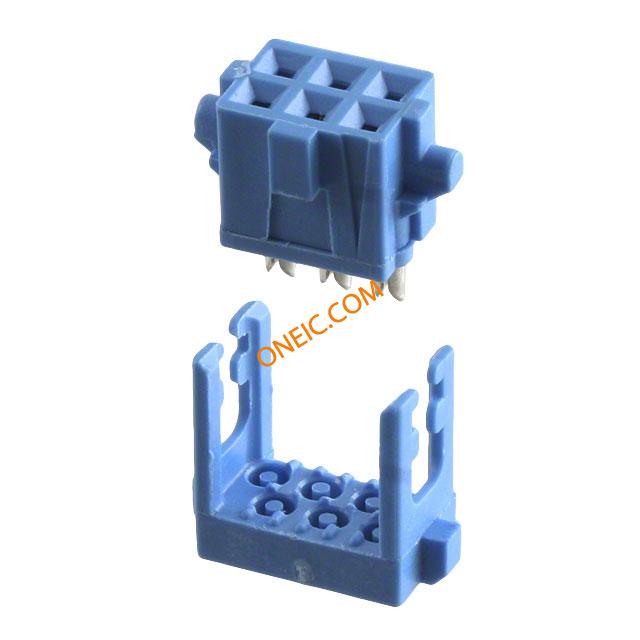

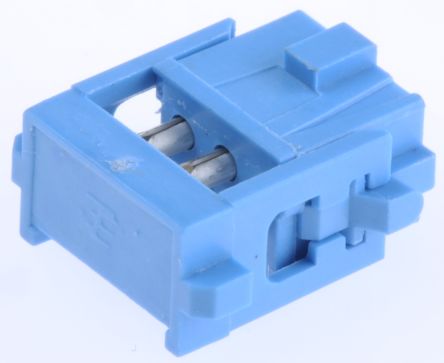

1658526-1
| 制造商 | |
| 描述 | Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 6POS VERT GOLD Ribbon cable conn.fem.6 way,2.54mm,blue Headers & Wire Housings .1CL IDC REC 2X03P 30AU Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 6ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, IDC, 2.54MM, 6WAY Ribboncableconn.fem.6way,2.54mm,blue TE Connectivity AMP-LATCH 609 系列 2行 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-0630LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | 16585261 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 609 Series | 最大额定电流 | 1A |
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 28-30 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 极化 | Center & Military |
| 第二连接器 | Without | 外壳颜色 | Blue |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | AMP-LATCH | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Thermoplastic Glass Reinforced | 安装特性 | Without |
| 电缆端接方式 | IDC | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 6 | 位数 | 6 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | AMP-LATCH | 产品特性 | Polarizing Key |
| 产品子类型 | Receptacles / Sockets - PCB | 连接类型 | Ribbon Cable |
| 带调制解调器控制 | Yes | ||
