1650226-1
| 制造商 | |

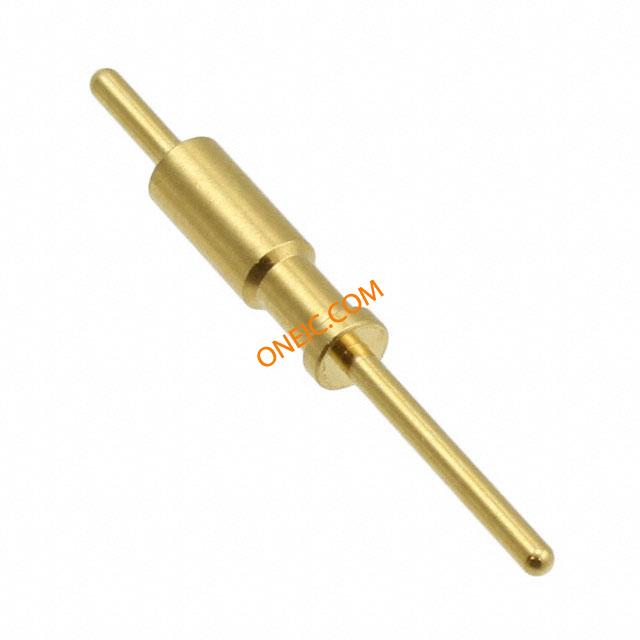

| 描述 | Contact PIN Solder ST Thru-Hole High Current ELCON Drawer Connectors 707-40-02109=CONTACT,PIN,#20 1650226-1 High Current ELCON Drawer Connectors Product Highlights:ContactContact Size = 20PinTermination Type = PCB (Postmate)Not Hot Pluggable |
| 分类 |
商业参数
| 标准包装规格 | 250 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 镀层 | 金 | 包装方式 | Bulk |
| 导线线规 | 24 – 20 | 端接方式 | Solder |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | 通孔 - 焊接 | 插针或插孔 | Pin |
| 释放力 | 不带 | 端子尺寸 | 20 |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜 |
| 触头材料 | Copper | 包装数量 | 250 |
| 端接样式 | 插针 | 接触件端接 | Solder, PCB |
| 触点镀层 | 金 | 绝缘材料 - 材质 | 不带 |
| 接触件表面处理 - 配合 | 金 | 法兰上方插针尺寸 | 1.02 mm [ .04 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 护套（绝缘）厚度 | 1 µm [ 40 µin ] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 主要用途 | 标准非热插拔 | 产品子类型 | 端子 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
