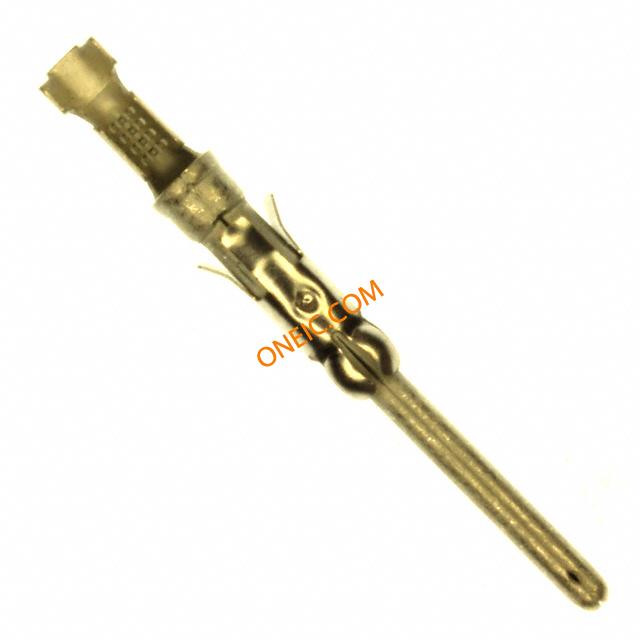

164163-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASS. TYP3+ Multimate CONN PIN 24-20AWG SIZE 16 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = PinContact Classification = GroundType III+ SeriesTin Contact Plating, Mating Area, MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, HD, 0.3-0.56MM PIN ASS |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 深度 | 2.9 mm | 间距 | Not Required mm |
| 重量 | 0.044 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触点尺寸 | :20 | 触头类型 | Ground |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 29.4 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 78.7µin (2.00µm) | 线规或范围 - AWG | :24AWG |
| 线规或范围 - mm² | :0.56mm² | 外径-未扩张 | :0.56mm |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | Multimate III+ | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :Type III+ Series Connectors |
环境参数
| 工作温度 | :125°C | ||
