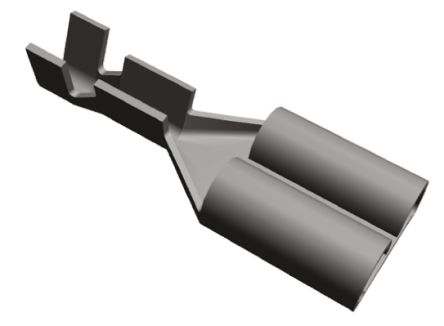

160860-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 17-20AWG RCP 19.2mm 6.6mm Tin Strip Terminals Receptacle 20-17 AWG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 17-20AWG 0.250 FASTIN-FASTON, female, 6.35x0.81 Receptacle contact, FASTIN-FASTON (REEL) Quick Disconnect Terminal 17-20AWG RCP 19.2mm 6.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.40-2.30 [.055-.090] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 17-20AWG 0.250 FASTIN-FASTON,female,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FF 250 REC 0.5-1.0MM2 TPPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111018CT |
| 产品类别 | Terminals | 标准包装数量 | 15,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 表面处理 | Tin | 长度 | 19.4mm |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 20-17 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 1mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | 母端 | 适用端子尺寸 | 1.4 – 2.3 mm [ .055 – .09 in ] |
| 绝缘直径 | 1.40-2.30 [.055-.090] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | 堆叠高度（配合） | .057 |
| 线规或范围 - AWG | 17AWG | 线规或范围 - mm² | 0.50-1.00² [20-17] |
产品信息
| 备注 | With dimple; Chamfered | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
