点击放大查看

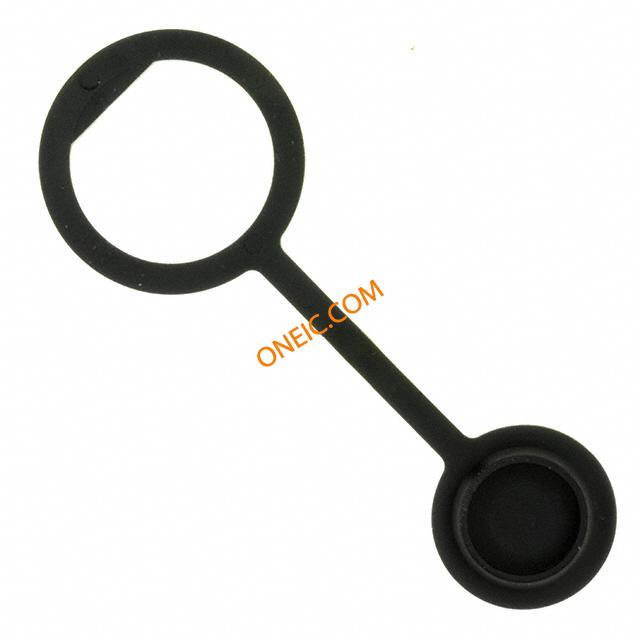

1604089-1
| 制造商 | |
| 描述 | Connector Accessories Dust Cap Shell Size 8 Miniature CPC (Circular Plastic Connector) CONN CAP DUST MINI SHELL SIZE 8 Standard Circular Connector DUST CAP SIZE 8 Connector Accessories Dust Cap Shell Size 8 Product Highlights:AccessoryAccessory Type = Dust CapShell Size = 8Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector Cap,Dust;Dust;8;RoHSCompliant,ELVCompliant Miniature Circular Plastic Connector Shell Size 8 Dust Cap Dust cap for 4 pole, 1604089-1, TE Connectivity CAP,DUST,SIZE 8 |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 其他名称 | A99372 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 20.2 mm |
| 高度 | 3.7 mm | 外形尺寸(长x宽) | 8 |
| 材料（通用） | Elastomer | 包装方式 | 盒 |
| 外壳尺寸 | 8 | 外壳材料（壳体） | 弹性体 |
| 总长度 | 55 mm | 包装数量 | 1000 |
| 外壳尺寸-插件 | 8 | 兼容外壳尺寸（如TM-700等） | 母端 |
产品信息
| 类型 | Cap | 系列 | CPC |
| 卡类型 | Dust | 描述 | Dust protection cap for 4-pole device bushings |
| 产品子类型 | Dust Cap | 附件类型 | Cap (Cover) |
| 射频系列/标准 | 1604089 | 适用产品/相关产品 | Miniature CPC |
