点击放大查看

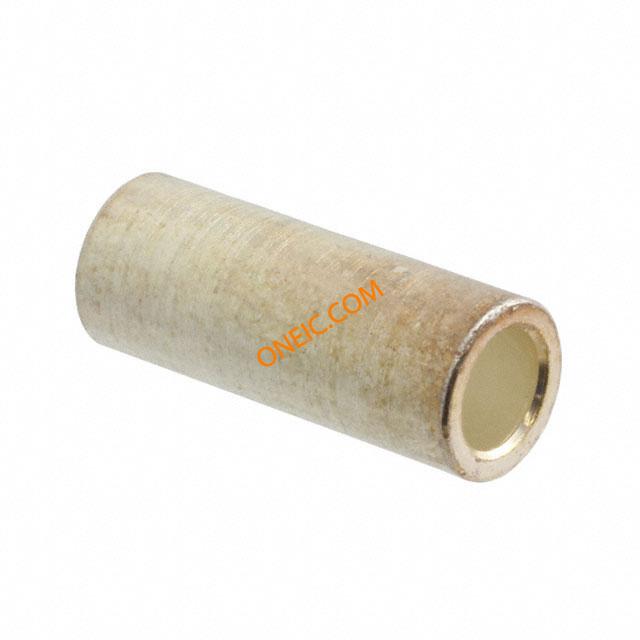

1604072-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | REDUCING BUSHING,120A PWR PROD Power Connectors ACCESSORY REDUCING BUSHING 6AWG Heavy Duty Power Connectors REDUCING BUSHING 120A REDUCING BUSHING,120A PWR PROD Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant |
| 分类 |
商业参数
| 标准包装规格 | 500 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 500 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| UL电压 | 600 | 额定电压 | 600 |
| 供电电压 | 600 | 最大额定电流 | 120 A |
机械参数
| 宽度 | 8.5 mm [ .334 in ] | 高度 | 8.49 mm [ .334 in ] |
| 长度 | 21.7 mm [ .854 in ] | 材料（通用） | Copper |
| 包装方式 | 袋 | 导线线规 | 6 |
| 电缆直径 | 25656 – 27629 | 连接器类型 | 线到线 |
| 接触镀层 | Silver | 触头材料 | Copper |
| 壳体材料 | Copper | 包装数量 | 500 |
| 触点数 | 2 | 接触镀层厚度 | 1.27 µm [ 50 µin ] |
| 线路侧导线/螺柱尺寸 | 2 to 6 AWG | 线规或范围 - AWG | 6 |
产品信息
| 系列 | 120 AMP | 产品子类型 | Reducing Bushing |
| 附件类型 | Reducing Bushing | 规格说明 | 6 AWG |
| 适用产品/相关产品 | Power Series 120 | ||
