1604059-4

制造商	TE Connectivity Ltd.

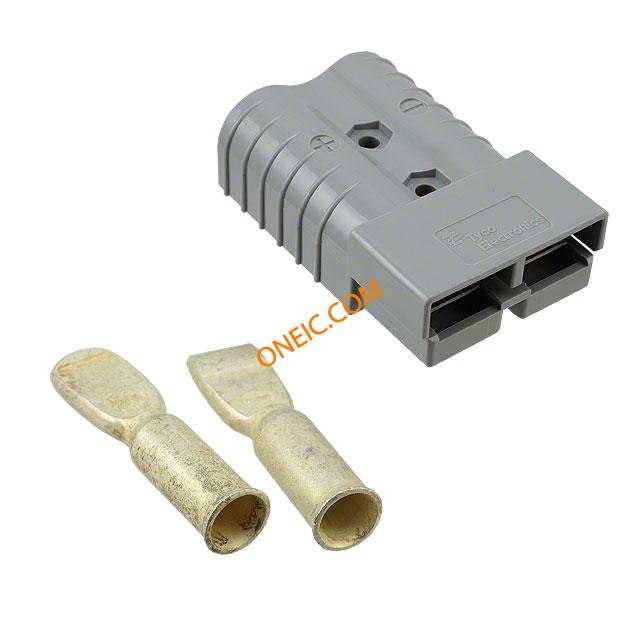

描述	Conn Battery M 2 POS Crimp ST Cable Mount 2 Terminal 1 Port Bulk Power Connectors CONN PLUG 2POS 2/0AWG SILVER Power to the Board 350A 2/0AWG GRAY Power Connectors Product Highlights:Connector Kit350 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 2/0 AWGCurrent = 350 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

标准包装规格	1	产品类别	Power to the Board
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压

600V

最大额定电流

350A

机械参数

颜色	Gray	包装方式	Bulk
导线线规	2/0 AWG	端接方式	Crimp
安装类型	Cable Mount	连接器类型	Assembly (Kit), Non Gendered
接触镀层	Silver	紧固类型	Spring Retention
排数	1	连接器样式	2 Poles
触头材料	Copper Alloy	位数	2
绝缘材料 - 材质	Polycarbonate (PC)	线规或范围 - AWG	2

产品信息

类型

Battery

连接器性别

环境参数

工作温度

-20°C ~ 105°C

相关型号

1604050-4

te connectivity / amp

Conn Housing RCP 2 POS Crimp ST Power Connectors CONN HOUSING 2POS GRAY Power to the Board HSG SUB-ASY GRAY 350A Conn Housing RCP 2 POS Crimp ST Product Highlights:Housing350 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 350 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 350A HOUSING SUB-ASSY,GRAY

¥43.5989

详情
