160314-2
| 制造商 | |

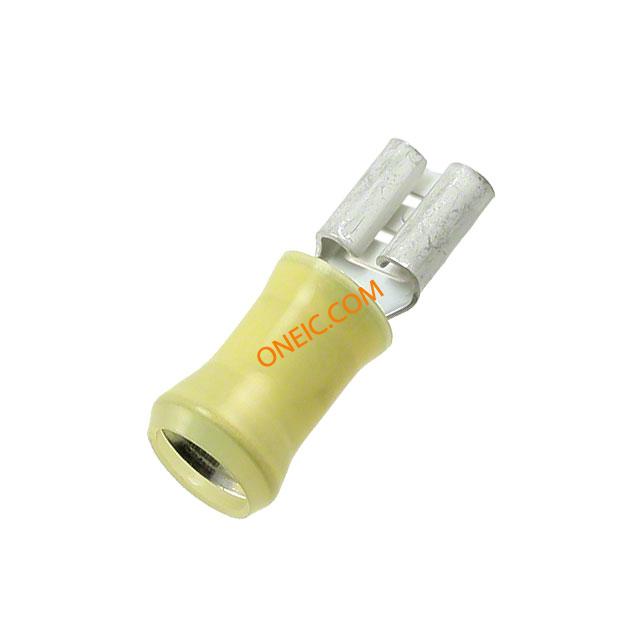

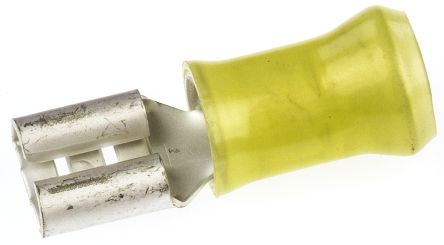

| 描述 | PIDG Quick Disconnect Terminal 10-11.5AWG F 26.5mm 7.6mm Gold Loose Piece Terminals .250 FASTON RECPT Quick Disconnect Receptacles - Insulated 250 FASTON Yellow female receptacle,2.7-6.6sq.mm PIDG Quick Disconnect Terminal 10-11.5AWG F 26.5mm 7.6mm Gold Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 4.00-6.00² [11.5-10] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 6.30 [.248] mm [in]Search Keywords:Terminals and Splices TERMINAL FEMALE DISCONNECT 6.35MM YELLOW Yellowfemalereceptacle,2.7-6.6sq.mm Terminal: flat; 6.3mm; 0.8mm; female; 4÷6mm2; crimped; for cable Blade receptacle yellow 6.3 x 0.8 mm, 160314-2, TE Connectivity TE Connectivity PIDG FASTON .250 系列 黄色 绝缘 压接插座 , 6.35 x 0.81mm, 镀金触芯 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 1603142 |
| 产品类别 | Terminals | 标准包装数量 | 500 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 73182300 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 深度 | 7.6 mm |
| 宽度 | 6.3mm | 表面处理 | Tin |
| 长度 | 26mm | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.8mm |
| 绝缘类型 | Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 11-10 | 方向 | straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.031" (0.79mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Gold |
| 连接器样式 | Straight | 插入力 | Normal |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Yellow | 总长度 | 1.015" (25.78mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickConnect |
| 绝缘高度 | Insulation Support | 连接器颜色 | yellow |
| 绝缘直径 | 6.30 [.248] | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | No | 线规或范围 - AWG | :11AWG |
| 线规或范围 - mm² | 4.00-6.00² [11.5-10] | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1 | 连接器性别 | Female |
| 系列 | 250 | 纹理 | Dimple without wire stop |
| 单元数量 | 1 | 专有名称 | PIDG FASTON |
