1586041-8

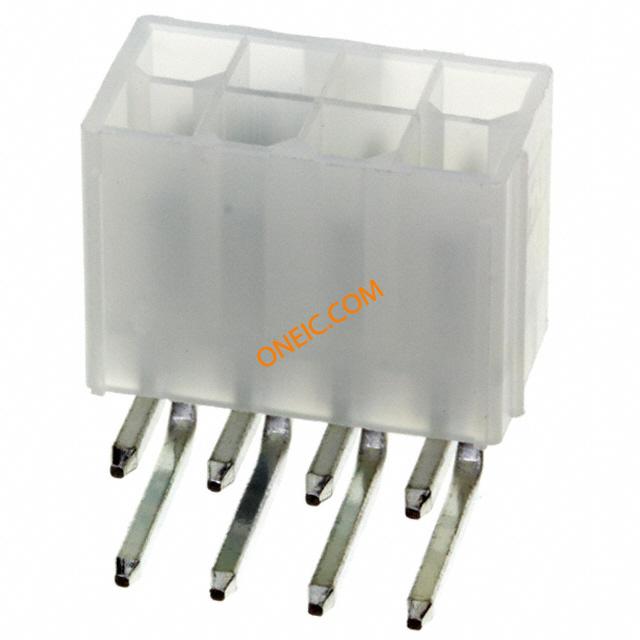

点击放大查看

1586041-8

制造商
TE Connectivity Ltd.
描述Conn Wire to Board PIN 8 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 8POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 8P Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 8UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 8WAY Connector;PinHeader;UL94V-2 8P VAL-U-LOK R/A HDR V2
分类
硬件与散热解决方案机箱机箱
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Trays
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准DFE-230-5
海关税号85369010无铅定义Wave solder capable to 240°C
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压600 V最大额定电流9 A
最小供电电压600VAC

机械参数

深度19.6 mm间距4.2 mm
重量0.0293直径Not Required mm
包装方式Bulk排间距0.165" (4.20mm)
端接方式Solder触头类型Male Pin
引脚间距:4.2mm引脚长度（针脚）0.14"
安装类型Right Angle行程角度Right
连接器类型Header, Shrouded接触镀层Tin
紧固类型Locking Ramp安装样式Through Hole
排数2材料表面处理:-
触头材料Brass壳体材料Nylon
总长度18 mm主要材料WiretoWire&WiretoBoard
插针孔直径0.165"端接样式Crimp
第一触头极性Pin (Male)连接器颜色:White
触点数8接触件端接:Solder
位数8安装孔直径0.071"
第一连接器安装类型:PCB

产品信息

类型Wire to Board连接器性别PIN
系列PE产品特性Breakaway
制造商全称PESeries产品子类型Pin Header
端口数1 Port电路数8
加载位置数All

环境参数

工作温度-40C to 105C结工作温度105C

文档与媒体

PDF 文档
1444132.pdf
在线文档
1586041-8?RQPN=1586041-8
PDF 文档
55239.pdf
