1586024-4

点击放大查看

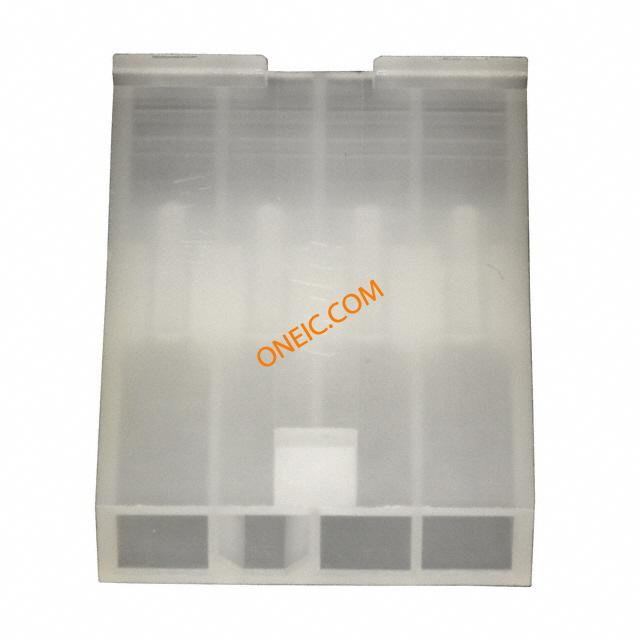

1586024-4

制造商
TE Connectivity Ltd.
描述Conn Housing PL 4 POS 4.2mm ST VAL-U-LOK Series Connector System CONN PLUG HOUSING 4POS SGL 4.2MM 4w s/r free hanging plug Pin & Socket Connectors 4P S/R FH PLUG V2 Conn Housing PL 4 POS 4.2mm ST Product Highlights:HousingPlugNumber of Circuits = 4UL 94V-2Number of Rows = SingleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG,FREEHANGING,VAL-U-LOK,4POS,SINGLEROW,UL94V-2 Male crimp housing Pitch4.2 mm Poles 1 x 4 VAL-U-LOK, 1586024-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm 节距 4 路 直 公 压接连接器外壳 4P S/R FH PLUG VAL-U-LOK V2
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号208567标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-2
认证机构标志否材料阻燃等级UL 94V-2

电气参数

额定电压600极数1 x 4
供电电压600中心频率带有
最大额定电流9 A最小供电电压600VAC

机械参数

颜色Natural深度23.8mm
间距4.2 mm宽度23.8 mm [ .937 in ]
高度7.4 mm [ .291 in ]长度18mm
密封型Not Sealed材料（通用）Nylon
包装方式Bulk电缆类型分离式导线
方向直排间距0.165" (4.20mm)
触头类型Male Pin外壳颜色Natural
安装类型Straight连接器类型Plug
接触镀层Tin, Gold紧固类型Locking Ramp
安装样式Free Hanging排数1
封装形式Plug插入力15
触头材料Brass, Phosphor Bronze壳体材料Nylon
总长度18 mm包装数量1000
主要材料InterconnectSystem端接样式Crimp
第一触头极性Pin (Male)触点数4
接触件端接Crimp绝缘直径1.2 – 3.1 mm [ .047 – .122 in ]
位数4典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列PE
制造商全称VAL-U-LOK产品子类型Housing
连接方式Wire-Wire电路数4
选择性装载No装配配置Without
适用产品/相关产品Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector

环境参数

测试温度标准件 - 非灼热丝工作温度-40 – 105 °C [ -40 – 221 °F ]

文档与媒体

PDF 文档
1444132.pdf
在线文档
1586024-4?RQPN=1586024-4

相关型号

1586314-1

1586314-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM PIN 18-22AWG TIN 4.2 PE series 22-18 awg contact pin Pin & Socket Connectors 4.2MM PIN 22-18AWG BRASS-TIN Conn Contact PIN 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactPinWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP Contact,Pin,VAL-U-LOK,WiretoWire,18-24AWG,600VAC,9A Crimp pin Male 22...18 AWG, 1586314-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 公 压接接线端子, 压接, 镀锡触点 VAL-U-LOK PIN BR TN 24-18 LP
