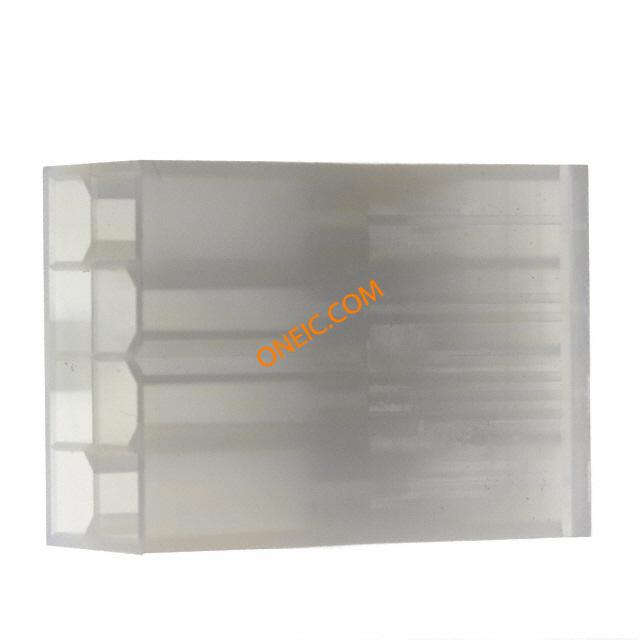

1586000-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 8POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 8P Conn Housing PL 8 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector,SoftShell;Nylon;Natural;Wire-to-WireandWire-to-Board;8 8P FH PLUG VAL-U-LOK V2 |
| 分类 |
商业参数
| 其他名称 | A30657 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 9 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 23.8 mm [ .937 in ] | 高度 | 9.6 mm [ .378 in ] |
| 长度 | 18 mm [ .7087 in ] | 密封型 | Not Sealed |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Plug |
| 插入力 | 15 | 壳体材料 | Nylon |
| 包装数量 | 500 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 8 |
| 接触件端接 | Crimp | 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] |
| 位数 | 8 | 典型触点布局 | 矩阵 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | PE |
| 产品子类型 | Housing | 电路数 | 8 |
| 选择性装载 | No | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
文档与媒体
相关型号
