点击放大查看

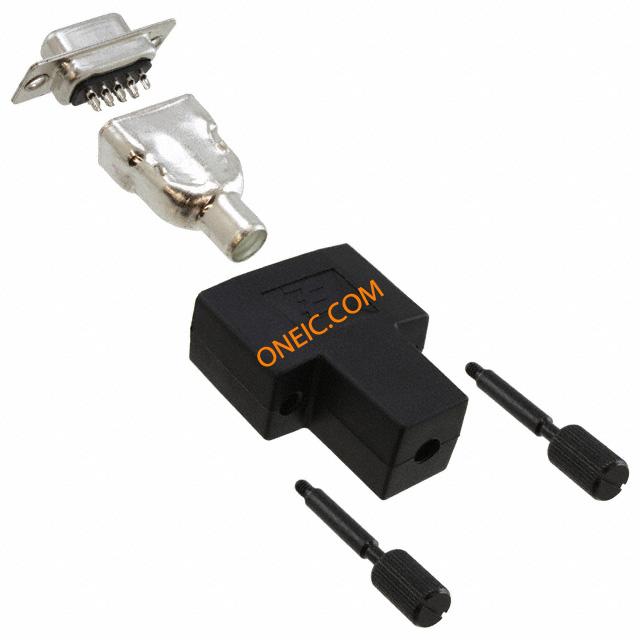

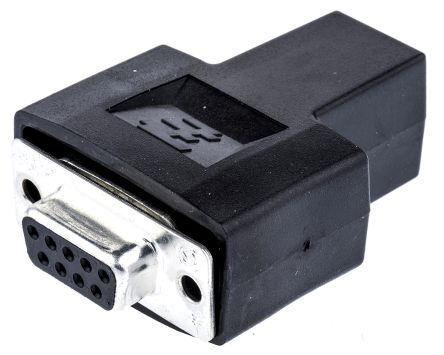

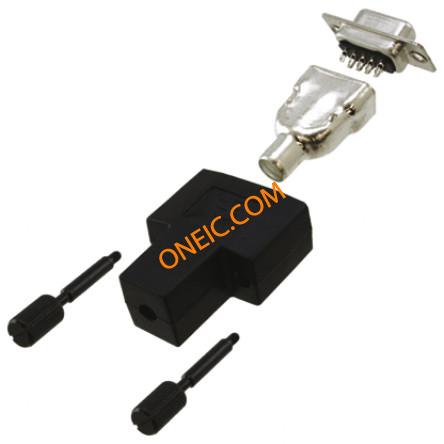

1571654-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS Solder Cup ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09S S/CUP KIT Standard Cable Connectors CONN KIT RCPT SHIELD 9POS AMPLIMITE HD-20 d-sub socket kit,9 way Conn D-Subminiature SKT 9 POS Solder Cup ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HD-20 (Solder Cup)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub RECEPTACLE, D-SUB, DA, SOLDER, 9WAY Conn;D-Sub;CableSocket;9Pos;STR;HD-20Series;20AWG;FullMetalShell D-Sub socket set 9P, 1571654-4, TE Connectivity TE Connectivity Amplimite HD-20 9触点 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | Insert,UL94V-0 | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series | 额定电压 | 250V |
| 工作电压 | :250V | 击穿电压 | :1000V |
| 最大额定电流 | 3A | 绝缘电阻 | :5000Mohm |
机械参数
| 颜色 | Black | 深度 | 33.78 mm |
| 宽度 | :33.74mm | 长度 | :16.74mm |
| 重量 | 0.001 | 材料（通用） | :Steel |
| 包装方式 | Bulk | 电缆类型 | Round Jacketed Cable |
| 外壳尺寸 | 1 | 导线线规 | :20AWG |
| 屏蔽类型 | Yes | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Solder Cup |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Solder | 接触镀层 | Gold |
| 法兰特征 | Cable Side; Male Jackscrew | 安装样式 | Wire |
| 排数 | 2 | 封装形式 | :PVC |
| 壳体镀层 | :Gold | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | PBT |
| 锁定特性 | Jackscrews | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 包装数量 | Bulk |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 连接器颜色 | :Black | 触点数 | 9 |
| 接触件端接 | :Solder | 绝缘直径 | 7.20 [0.283] |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外部壳体材料 | PVC | 线规或范围 - AWG | 0.5 - 0.6 [20] |
| 护套（绝缘）材料 | Brass | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HD-20 (Solder Cup) |
| 产品特性 | Backshell, Shielded | 制造商全称 | HD-20 |
| 预装 | No | 产品子类型 | Connector Kit |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
