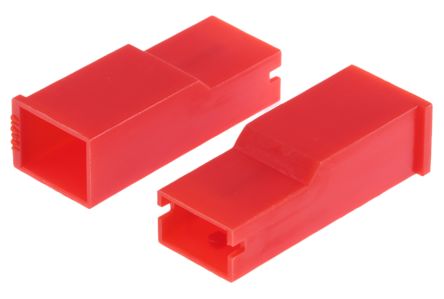

154719-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED |
| 分类 |
商业参数
| 产品 | Accessory | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 极数 | :1 | ||
机械参数
| 颜色 | Red | 深度 | 24.26 mm |
| 间距 | Not Required mm | 高度 | 9.83 mm |
| 重量 | 0.047 | 材料（通用） | Nylon |
| 按键颜色 | None | 插片宽度 | 6.35 [.250] |
| 触头类型 | Plug | 外壳颜色 | Red |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | :Rectangular Power |
| 接触镀层 | :- | 排数 | 1 |
| 连接器样式 | Straight | 触头材料 | :Brass |
| 壳体材料 | Polyamide 6/6 | 总长度 | Mark I |
| 第一触头极性 | :Socket | 连接器颜色 | :Red |
| 触点数 | 1 | 接触件端接 | :Crimp |
| 位数 | 1 | 外壳尺寸-插件 | :- |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | :250 | 编码、键控 | No |
| 产品子类型 | Receptacle Housing | 附件类型 | Insultation Sleeve |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
环境参数
| 工作温度 | :140°C | ||
