点击放大查看

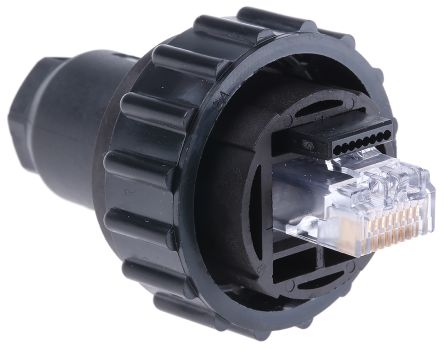

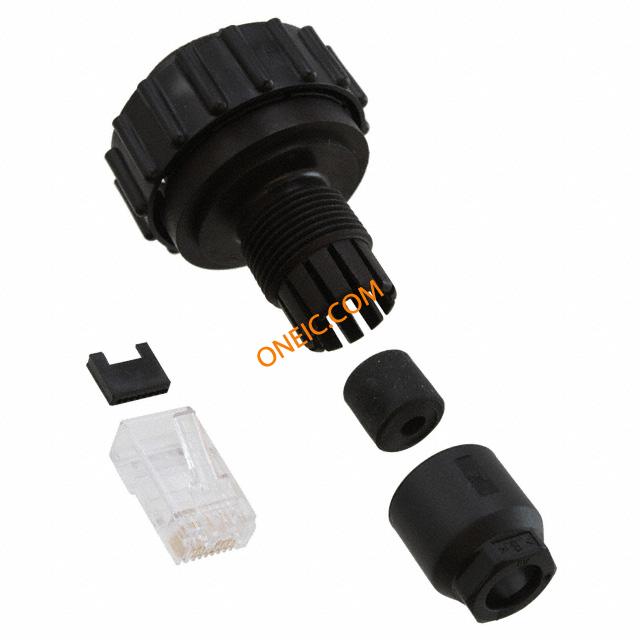

1546876-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5/Cat 5e CPC Series 45 Ethernet CONN MOD PLUG 8P8C UNSHIELDED Modular Connectors / Ethernet Connectors PLUG KIT UNSHEILDED Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5/Cat 5e Product Highlights:Connector Style = PlugNot ShieldedWire Type = SolidSearch Keywords:CPC (Circular Plastic Connector) Series 45 Ethernet, RJ45/RJ45, Category 5, Category 5e, Ethernet RJ45 ETHERNET CONNECTOR, PLUG 8WAY CABLE TE Connectivity 直 公 RJ45 连接器 , Cat5，Cat5e, 电缆安装型 CPC PLG ASSY,IND ETHERNET,UNSH,SLD WR |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Translucent - Clear | 长度 | 2.048" (52.02mm) |
| 重量 | 0.023 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 导线类型 | Solid |
| 电缆类型 | Round Cable, Solid Wires | 屏蔽类型 | No |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 连接器类型 | :RJ45 | 接触镀层 | :- |
| 安装样式 | Cable | 触头材料 | :- |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | PL |
| 系列 | :CPC | 产品特性 | Circular Threaded Coupling |
| USOC 编码 | RJ45 | 产品子类型 | Plug Assembly |
| 端口数 | :1 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55 â +105 | ||
