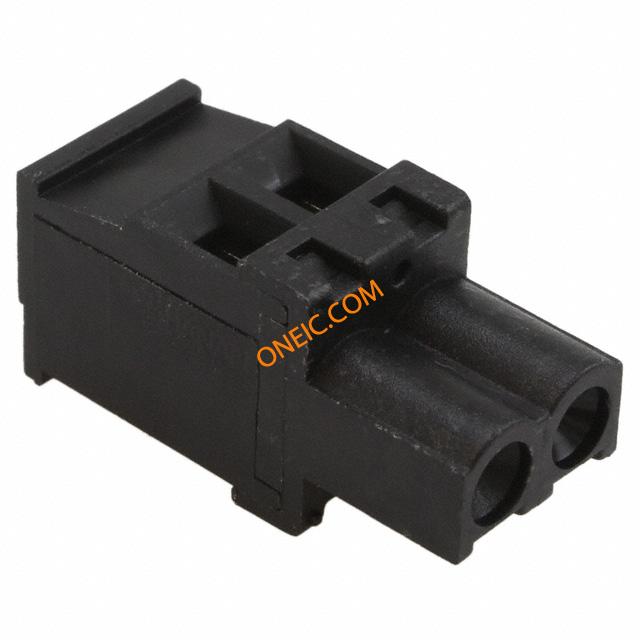

1546105-2
| 制造商 | |
| 描述 | Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 2 POS 5.08MM LH PLUG BLK Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = BlackSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2 POS 5.08MM LH PLUG BLCK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 300 |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 出线方向 | 侧 | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 第二连接器 | 否 |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug (left-hand) | 接触镀层 | Tin |
| 法兰特征 | Without | 排数 | 1 |
| 螺丝材料 | Brass | 插入件材料 | 磷青铜 |
| 插头进线方向 | 270° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 300 |
| 连接器间距 | Side | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Plug, Female Sockets |
| 端子螺钉表面处理 | 镍 | 螺纹/螺钉/孔尺寸 | 黄铜 |
| 中心触点材料 | 5.08 [0.200] | 螺钉材料 - 镀层 | Nickel |
| 线规或范围 - AWG | 30-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Non-Wire Side) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 2 | 并排堆叠 | 是 |
