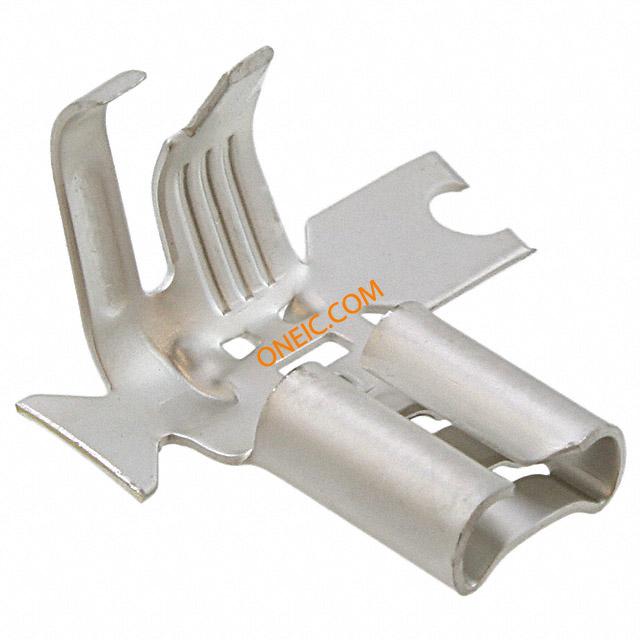

150699-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 12.7mm 5.61mm Tin Strip Terminals RECPT 6.35 x 0.81 mm FASTON Uninsulated Receptacles & Housings CONN RECPT FLAG 16-20AWG 0.187 Receptacle flag terminal, FASTON 187 Quick Disconnect Terminal 16-20AWG RCP 12.7mm 5.61mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity FASTON .187 系列 非绝缘 镀锡触芯 旗形压接端子 , 4.75 x 0.81mm FF 187 REC TERMINAL FLAG 20-15 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107157CT |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 深度 | 5.61 mm | 表面处理 | Tin |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 20-15 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 0.187 in x 0.02 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆直径 | 1.5mm² |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Flag | 连接器用途 | Wire & Cable |
| 箔压接区域 | Tab-Lok | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTON .187 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 2.8 – 4.32 mm [ .11 – .17 in ] |
| 接触件尾部长度 | 0.81mm | 绝缘直径 | 2.80-4.29 [.110-.169] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 焊盘布局尺寸 | 4.75 x 0.81mm | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 16AWG |
| 线规或范围 - mm² | 0.50-1.50² [20-15.5] | 第二连接器安装特性 | No |
| 触点镀层厚度 - 柱 | 4.75mm | 外径-未扩张 | 4.32 mm [ .17 in ] |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
