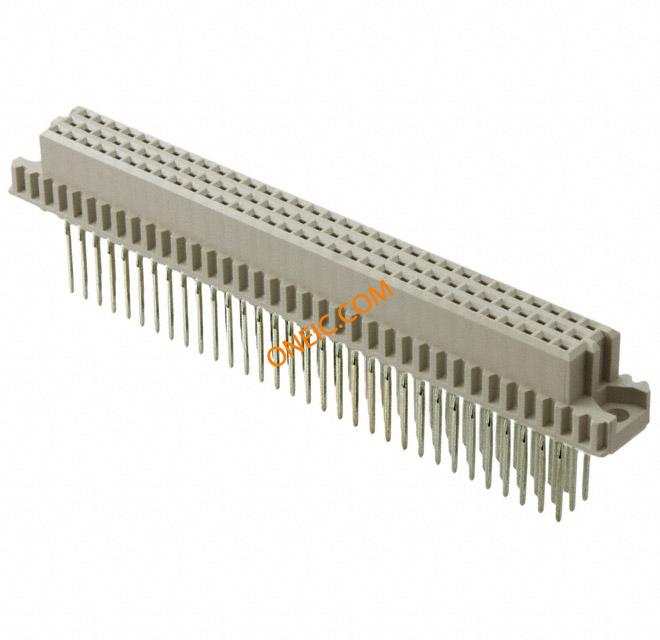

148057-5

点击放大查看

148057-5

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 RCP 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB DIN 41612 Connectors DIN RECPT 96P VERT TYPE C 13MM ASSY Eurocard Type C Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 EURO TYP C RECP 13MM ASSY
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

标准包装规格30产品类别DIN 41612 Connectors
标准包装数量Bulk工厂包装数量150

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

接口Eurocard/DIN 41612最大额定电流1.5 A

机械参数

尺寸Standard颜色Gray
间距2.54 mm涂层Without
包装方式Bulk端接方式Press Fit
触点尺寸0.64 [.025] Sq.触头类型Compliant Post
尾部长度13 mm安装类型Through Hole
连接器类型Receptacle, Female Sockets接触镀层Gold Over Nickel
安装样式带有排数2
电路板厚度2.36 [0.093]高度（英寸）24.51
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester安装特性With
面板安装类型通孔 - 免焊连接尺寸/外形标准
先合后断No连接器间距2.54
端接样式Press Fit触点数96
接触件尾部长度13横截面形状.64 x .64 mm [ .025 x .025 in ]
位数96触头长度-柱信号（数据）
绝缘材料 - 材质Polyester, Glass Filled安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度13.00 [0.512]
接触镀层厚度.76

产品信息

类型DIN 41612等级II
样式C连接器性别Receptacle
系列Eurocard产品子类型Type C Connectors
总线连接FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus连接类型Printed Circuit Board
列数18工具类型/特性Yes
加载位置数All

环境参数

温度No级别、等级3
工作温度-55°C ~ 125°C封装热阻1.57 mm [ .062 in ]
